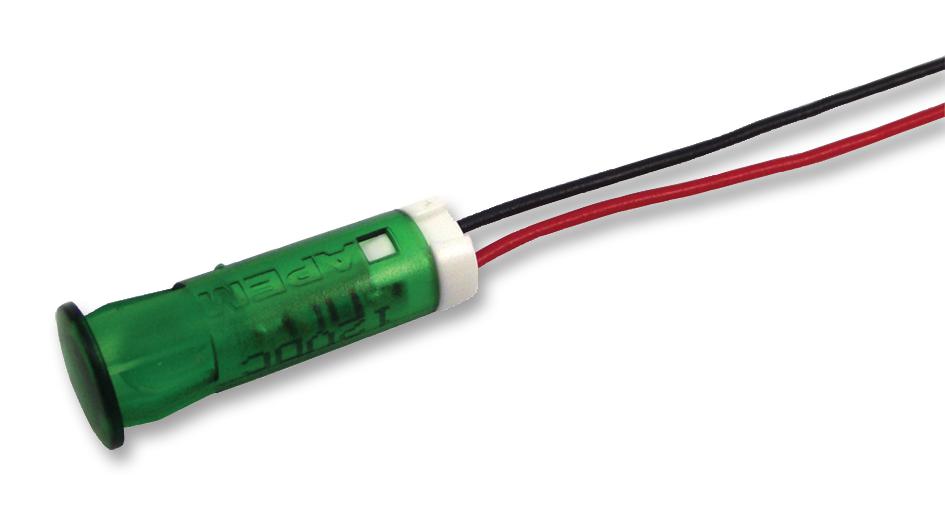

Apem QS83XXG12 Panel Mount LED Indicator
The QS SERIES Snap-in Panel Mount LED Indicators are designed for versatile panel illumination with various sizes, colors, and voltage options. These LEDs feature diffused lenses for enhanced visibility, available in multiple colors including Red, Green, Yellow, Blue, Orange, and White. They support voltages from 2VDC to 220VAC, with optional high brightness LEDs for daylight viewing. The indicators include solder lug or faston terminations, are molded from UL94V-0 polycarbonate, and have a life expectancy of 100,000 hours, suitable for demanding industrial applications.
Apem QS83XXG12 Panel Mount LED Indicator Specifications:
- Sizes: 6mm, 8mm, 10mm, 12mm (cut-out sizes)
- Lens Material: Polycarbonate (UL94V-0)
- Termination: Solder lug / Faston, wires (200mm standard length)
- Wire Gauge: 6mm & 8mm = 24 AWG; 10mm & 12mm = 22 AWG
- Input Voltage Range: 2VDC to 220VAC
- Standard Intensity LED: 25-1200 mcd, high brightness versions available
- Forward Voltage: 2.0V (Red) to 3.3V (White/Green/Yellow/Blue), up to 28VDC for certain colors
- Operating Temperature: -30°C to +85°C
- Life Expectancy: 100,000 hours
- Viewing Angles: 30° (standard), 45° (high brightness)
- Max Reverse Voltage: 5V
- Panel Thickness: 0.8mm to 1.6mm
- Certifications: UL496 recognized component
Buy the APEM Series QS LED Indicators: QS83XXG12
Order the APEM QS83XXG12 panel mount LED indicator today to enhance your control panels with reliable, bright illumination. These indicators are available in multiple sizes and colors, supporting a wide voltage range from 2VDC to 220VAC. They feature diffused lenses for clear visibility, durable polycarbonate construction, and solder lug or faston terminals for easy installation. With a lifespan of 100,000 hours and UL recognition, they ensure long-term, maintenance-free operation in demanding environments. Perfect for industrial, automation, and control panel applications.
Get APEM QS83XXG12 today—built for precise panel indication and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy Apem QS83XXG12?
You can click on the BUY or RFQ button to purchase QS83XXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS83XXG12?
You can download the QS83XXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of QS83XXG12?
Apem
