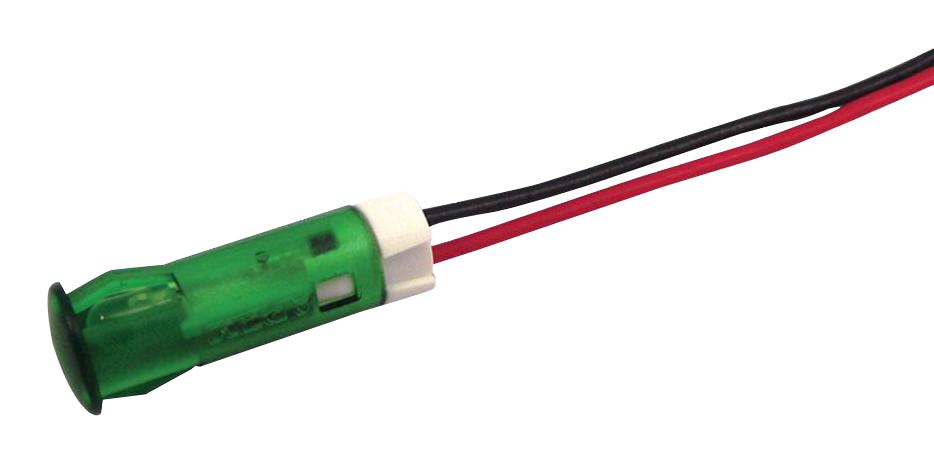

Apem QS83XXG24 Panel Mount LED Indicator
The QS83XXG24 from APEM is a versatile snap-in panel mount LED indicator featuring a durable polycarbonate UL94V-0 body and a green diffused flat lens. Suitable for replacing filament and neon indicators, it is ideal for applications including catering equipment, fire alarm panels, power distribution sockets, battery chargers, and domestic or commercial appliances. Operating at 21.6 to 26.4V DC with a forward voltage of 2.2V and a viewing angle of 30°, it boasts a lifespan of 100,000 hours, UL496 recognition, and a standard 8mm mounting hole for easy installation without additional hardware.
Apem QS83XXG24 Panel Mount LED Indicator Specifications:
- Body Material: Polycarbonate UL94V-0
- Lens Color: Green, diffused flat lens
- Mounting Hole Size: 8mm
- Operating Voltage: 21.6 to 26.4V DC
- Forward Voltage: 2.2V
- LED Intensity: 20mcd
- Viewing Angle: 30°
- Reverse Voltage Max: 5V
- Temperature Range: -30°C to +85°C
- Life Expectancy: 100,000 hours
- Wire Lead Length: 200mm
- Approvals: UL496 recognized
Buy the Buy APEM QS83XXG24 Part Number QS83XXG24 Online
Purchase the APEM QS83XXG24 green LED indicator online today. Designed with a durable polycarbonate body and UL94V-0 rating, it features an 8mm snap-in mounting for fast installation in panels. Operating at 21.6 to 26.4V DC with a forward voltage of 2.2V and a viewing angle of 30°, it offers a lifespan of 100,000 hours. Suitable for diverse industrial and commercial applications, its wire lead length of 200mm ensures reliable connectivity for long-term use.
Get APEM QS83XXG24 today—built for precision and long-lasting durability in industrial indicators.
Frequently Asked Questions
Where can I buy Apem QS83XXG24?
You can click on the BUY or RFQ button to purchase QS83XXG24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS83XXG24?
You can download the QS83XXG24 datasheet or visit the Apem website for support.
Who is the manufacturer of QS83XXG24?
Apem
