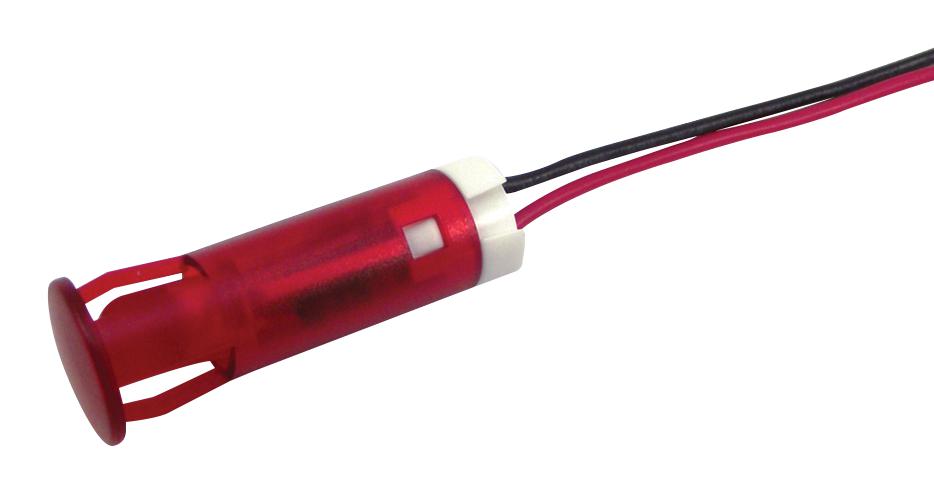

Apem QS83XXHR110 Panel Mount LED Indicator
The QS series snap-in panel-mount LED indicators are available in multiple colors, including red, green, yellow, blue, orange, and white (clear). They offer various termination options such as solder lug/Faston connectors, wire leads (standard 200mm length), and multiple sizes ranging from 6mm to 12mm diameter. These LEDs feature colored diffused flat lenses with options for standard or high brightness versions, ideal for daylight visibility. Bicolour LEDs can display two colors by reversing polarity, up to 28 VDC. Designed for front panel snap-in mounting without hardware, they are UL recognized and include options with flashing, resistor-less, and high-brightness LEDs suitable for industrial and signaling uses.
Apem QS83XXHR110 Panel Mount LED Indicator Specifications:
- Available in 6mm, 8mm, 10mm, and 12mm sizes with panel cut-outs of 6.00 +0.15/-0.0 mm, 8.00 +0.15/-0.0 mm, 10.00 +0.15/-0.0 mm, and 12.00 +0.15/-0.0 mm respectively
- Operating temperature range: -30°C to +65°C
- Max reverse voltage: 5V
- Life expectancy: 100,000 hours
- Materials: Moulded polycarbonate
- Maximum panel thickness: 0.8 to 1.6 mm
- Electrical specifications include forward voltages of about 2V (red) to 3.2V (white) at 20mA
- Intensity options: standard and high brightness LED variants
- Wiring: standard 200mm wire length with 24 AWG (QS6 & QS8) and 22 AWG (QS10 & QS12)
- Voltage supply options: 2.1-3.3 V (no resistor), 6V, 12V, 24V, 28V DC, and 110V/220V AC compatible high-brightness LEDs
- Mounting: snap-in front panel installation with no additional hardware needed
- Color options: Red, Green, Yellow, Blue, White (clear), Orange, Bi-color, Tri-color, Flashing
- Electrical connection terminals: solder lug/faston or wires
- Certification: UL496 recognized
- Special features: resistor-less operation, flashing LEDs for signaling
Buy the Buy APEM QS Series Part Number QS83XXHR110 Online
Secure your QS series snap-in LED indicators online today for reliable, high-quality lighting solutions across industrial, signaling, and control applications. Featuring versatile sizes from 6mm to 12mm and multiple colors including red, green, yellow, blue, and white—these LEDs are designed for front panel snap-in mounting, requiring no additional hardware. Available with high brightness options, flashing modes, resistor-less operation, and UL recognition, they deliver excellent visibility in daylight conditions and withstand harsh environments. Order now for fast delivery and dependable performance in your projects.
Order your APEM QS Series QS83XXHR110 high-brightness LED indicator today and enhance your industrial signaling and front panel applications with reliable quality.
Frequently Asked Questions
Where can I buy Apem QS83XXHR110?
You can click on the BUY or RFQ button to purchase QS83XXHR110 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part QS83XXHR110?
You can download the QS83XXHR110 datasheet or visit the Apem website for support.
Who is the manufacturer of QS83XXHR110?
Apem
