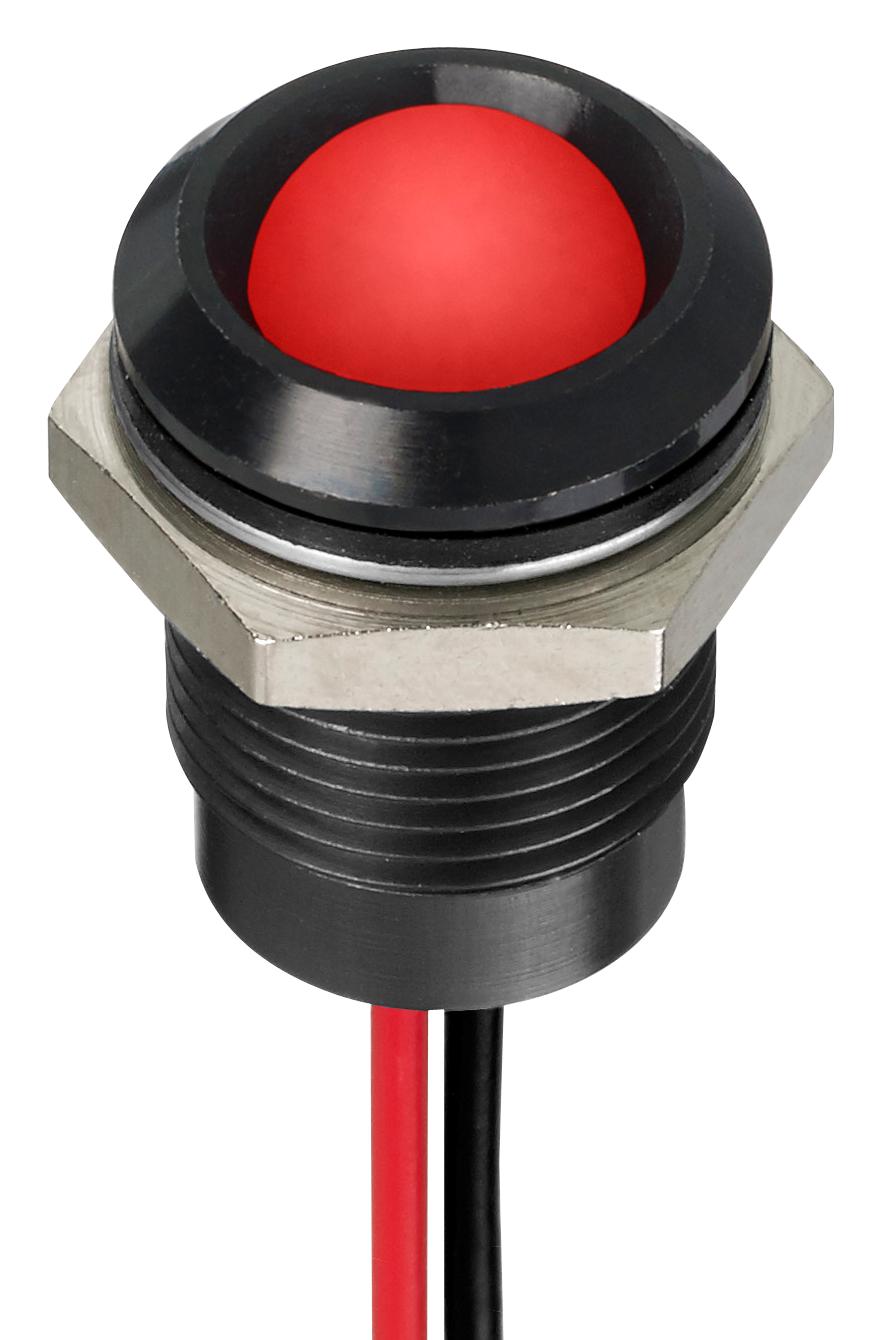

Apem Q14P5BZZRGB12ECA LED Indicator
The Q14 series features 14 mm panel mount LED indicators suitable for various applications. They come with water clear or diffused epoxy lenses and bright LEDs in multiple colors including RGB, red, green, yellow, blue, and white. Designed with prominent, flush, or recessed bezels, they offer high durability with IP67 sealing options. Operating from 1.8V to 33V DC or 110V/220V AC, these indicators provide long life expectancy of 100,000 hours and depend on environmental conditions for optimal performance. They’re ideal for control panels, machinery, and industrial equipment requiring clear visual status indication.
Apem Q14P5BZZRGB12ECA LED Indicator Specifications:
- Lens: 10 mm diffused epoxy or water clear
- LED Colors: RGB, red, green, yellow, blue, white, orange
- Mounting: Panel mount with prominent, flush, or recessed bezel styles
- Sealing: IP67 waterproof option available
- Operating Voltage: 1.8V to 33V DC; 110V/220V AC (with resistor required for AC)
- Electrical Characteristics: Forward voltage ranges from 2V to 30V depending on color and type
- Life Expectancy: up to 100,000 hours
- Viewing Angle: 30° to 100° depending on model
- Materials: Plated brass bezel, polycarbonate rear body
- Max Panel Thickness: 11 mm
- Temperature Range: -30°C to +85°C depending on body type
- Terminals: Solder lug, faston, pins, or wires (200 mm length)
- Torque: 75 cNm
- Dimensions: Diameter 14 mm, body length varies, bezel size M14x1.0
- Environmental: Designed to operate reliably in harsh industrial environments
Buy the APEM Series Q14 LED Indicators: Q14P5BZZRGB12ECA
Enhance your industrial control panels with the high-quality Q14 series LED indicators. Featuring bright LEDs in multiple color options including RGB, these indicators offer IP67 sealing for durability in harsh environments. Easy to install with various mounting styles and terminal options, they operate reliably from 1.8V to 33V DC or 110V/220V AC. With a lifespan of up to 100,000 hours, the Q14 series ensures long-term performance. Order online today for fast delivery and dependable visual signaling solutions for your projects.
Order your APEM Series Q14P5BZZRGB12ECA LED indicators today and enhance your control panels with bright, durable visual signals.
Frequently Asked Questions
Where can I buy Apem Q14P5BZZRGB12ECA?
You can click on the BUY or RFQ button to purchase Q14P5BZZRGB12ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5BZZRGB12ECA?
You can download the Q14P5BZZRGB12ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5BZZRGB12ECA?
Apem
