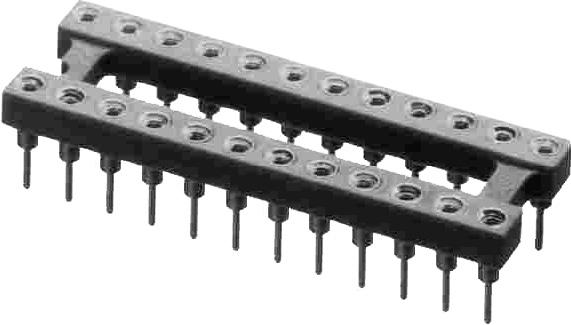

ARIES ELECTRONICS 14351811 Open Frame Socket
Open-frame collet socket with solder tails, designed for efficient utilization of board space and optimized cooling. Features include compatibility with automatic insertion equipment, side-to-side and end-to-end stackability, various pin styles, and durable materials such as brass and UL 94V-0 nylon. It offers multiple plating options like gold and tin, accommodates different pin counts from 8 to 64, and suits high-temperature environments up to 125°C. Its rugged construction ensures reliable electrical connections for diverse electronic and IC applications, making it ideal for manufacturing, testing, and repair of electronic assemblies.
ARIES ELECTRONICS 14351811 Open Frame Socket Specifications:
- Body Material: black UL 94V-0 glass-filled 4/6 Nylon
- Pin Body: Brass 360 1/2-hard per UNS C36000 ASTM B16-00
- Pin Plating: 200p [5.08p] min. Sn/Pb per ASTM B545, optional Au plating up to 30p [0.76p]
- Pin Count: 8 to 64 pins, customizable as per order
- Operating Temperature: up to 125°C (257°F)
- Contact Current Rating: 3 amps per pin
- Insertion Force: 180g per pin
- Withdrawal Force: 909g per pin
- Mounting: Suitable for PCB holes 0.030 +0.002 [0.76 +0.05] dia.
- Row Spacing: options include 0.300 [7.62] and 0.400 [10.16]
- Center-to-center dimensions vary with configuration
- Available with heavy gold plating or tin/lead plating
- Compatible with automatic insertion and interchangeable stackable configurations
Buy the Buy Open Frame Collet Socket with Solder Pins Part Number 14351811 Online
Purchase the Aries Open Frame Socket with solder tails, designed for efficient electronic connections in PCB assemblies. Featuring multiple pin styles, durable brass and nylon construction, and various plating options including gold and tin, this socket supports high-temperature environments up to 125°C. Its stackable design and compatibility with automatic insertion make it ideal for manufacturing, testing, and repair applications. Order online today for reliable electrical performance, easy installation, and long-lasting durability in electronic device assembly.
Get Aries Open Frame Collet Socket 14351811 today—built for reliable IC connections, stackability, and high-temperature durability.
Frequently Asked Questions
Where can I buy ARIES ELECTRONICS 14351811?
You can click on the BUY or RFQ button to purchase 14351811 from an authorized ARIES ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 14351811?
You can download the 14351811 datasheet or visit the ARIES ELECTRONICS website for support.
Who is the manufacturer of 14351811?
ARIES ELECTRONICS
