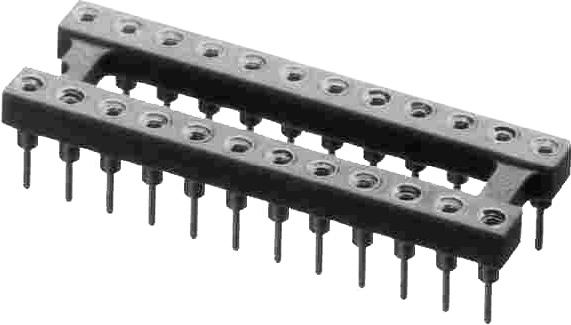

ARIES ELECTRONICS 24451811 IC Socket
Open frame collet socket with solder tail designed for 24-pin integrated circuit components, offering reliable electrical connections and easy IC insertion/removal in electronic assemblies. Constructed with black UL 94V-0 glass-filled nylon body and brass pin bodies plated with 10p [0.25] min. Au per MIL-G-45204, ensuring durability and corrosion resistance. This socket supports multiple plating options, accommodates various lead lengths, and features a suggested PCB hole size of 0.030 +0.002 inches, making it ideal for efficient protection and secure mounting in industrial electronic applications.
ARIES ELECTRONICS 24451811 IC Socket Specifications:
- Body Material: black UL 94V-0 glass-filled nylon
- Pin Body: Brass 360 1/2-hard per UNS C36000 ASTM B16-00
- Pin Plating: 10p [0.25] min. Au per MIL-G-45204
- Contact Current Rating: 3 amps
- Operating Temperature: 221°F [105°C], 257°F [125°C] for Au plating
- Insertion Force: 180g/pin
- Withdrawal Force: 909g/pin
- Normal Force: 140g/pin
- Recommended PCB Hole Size: 0.030 +0.002 inches
- Pin Count: 24
- Row-to-Row Spacing Options: 0.300 [7.62], 0.400 [10.16], 0.600 [15.24], 0.900 [22.86] inches
- Plating Options: Au Collet/Sn Shell, Au Collet/Au Shell, Au Collet/Sn/Pb Shell
- Lead Length Compatibility: from 0.100 [2.54] min., up to 0.022 [0.56] dia.
- Supported configurations include heavy Au on collet, extra long solder tails, and midget solder tails.
Buy the Aries 24451811 – Reliable IC Socket for Industrial Applications
Order the Aries 24451811 IC socket online today and enjoy seamless installation, secure electrical connections, and durable materials perfect for industrial and electronics manufacturing. Designed for 24-pin integrated circuits, this open frame socket simplifies IC insertion and removal while providing reliable contact under demanding conditions. Its robust construction with gold-plated contacts and tested specifications ensures long-term performance. Whether for prototyping or mass production, purchasing this socket online guarantees quick delivery, quality assurance, and cost-effective solutions for your electronic assembly needs.
Buy Aries 24451811 now and experience unmatched reliability and performance in your electronic assembly projects.
Frequently Asked Questions
Where can I buy ARIES ELECTRONICS 24451811?
You can click on the BUY or RFQ button to purchase 24451811 from an authorized ARIES ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 24451811?
You can download the 24451811 datasheet or visit the ARIES ELECTRONICS website for support.
Who is the manufacturer of 24451811?
ARIES ELECTRONICS
