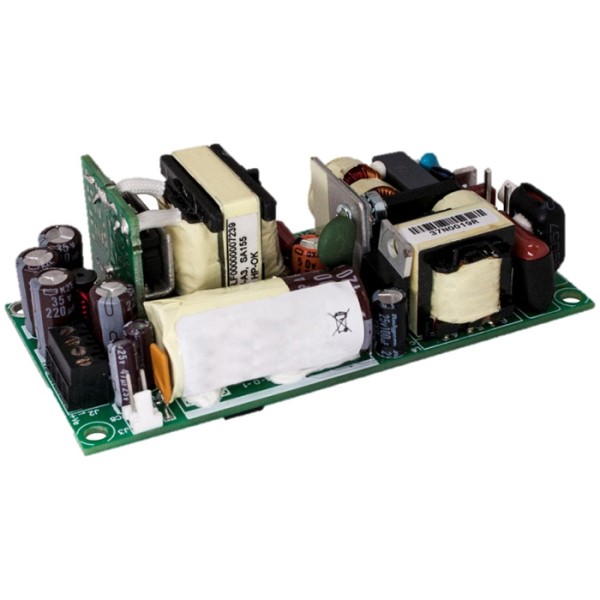

BEL POWER SOLUTIONS ABC1501T15G 150W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC150 series of open-frame power supplies delivers 150W of output power with a wide universal input range. Designed for high-power density and efficiency, these power supplies minimize power loss in end-use equipment, improving reliability and thermal management. They are ideal for telecom, datacom, industrial equipment, renewable energy, test and measurement, robotics, and wireless communication applications. Available with Class I or Class II options and a metal cover kit accessory.
BEL POWER SOLUTIONS ABC1501T15G 150W Open Frame Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 1.70 A max.
- Input Current (230 VAC): 0.85 A max.
- No Load Power: 1.2 W
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current (120 VAC): < 150 µA
- Leakage Current (230 VAC): < 300 µA
- Output Voltage: 5 V to 48 V
- Output Power: 150 W
- Fan Output: 12 V @ 5 A
- Efficiency: > 86%
- Hold Up Time (120 VAC): 6 ms
- Hold Up Time (230 VAC): 10 ms
- Power Factor (120 VAC): 0.99
- Power Factor (230 VAC): 0.95
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%
- Ripple: 1.0 % max
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3 %
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Short Circuit Protection: Automatic recovery
- Switching Frequency: 35 – 250 kHz
- Isolation Voltage: Min. 4000 VDC
- Safety Standards: EN / IEC / UL 62368-1 (Ed.3)
