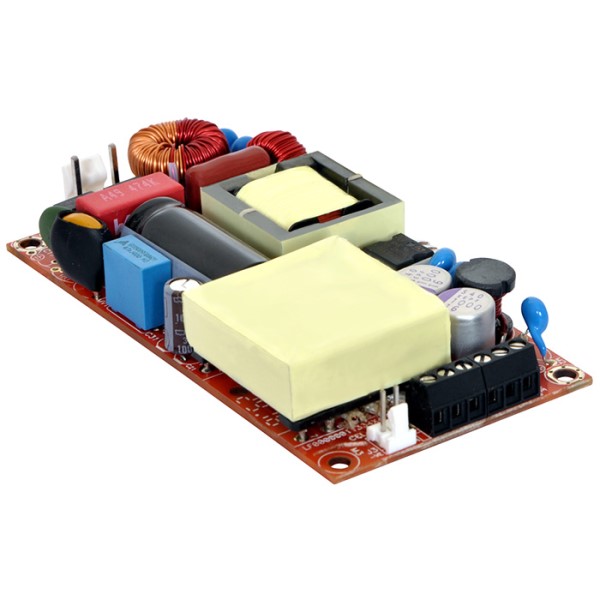

BEL POWER SOLUTIONS ABC1801012L Ultra Low Profile Power Supply
The BEL POWER SOLUTIONS ABC180 series of power supplies provides a compact and efficient solution for a wide range of applications. These ultra-low profile open frame power supplies offer a wide universal AC input range of 80 – 264 VAC, delivering up to 180 W of output power. Their high efficiency and power density minimize power loss, enhancing reliability and simplifying thermal management. Ideal for telecom, datacom, industrial equipment, and robotics, the ABC180 series meets regulatory approvals for environmentally-friendly end products. Features include thermal shut-down, a 12V fan output, and a high MTBF.
BEL POWER SOLUTIONS ABC1801012L Ultra Low Profile Power Supply Specifications:
- Form Factor: 4 x 2 x 0.75 Inch
- Output Power (Forced Air): 180 Watts
- Output Power (Convection): 120 Watts
- Efficiency: Up to 92%
- Operating Temperature: -40 to 70 °C
- Compliance: IEC / EN / UL 62368-1
- Fan Output: 12 V / 0.5 A
- Thermal Shut-Down: Feature
- MTBF: 3.37 million hours (Telcordia -SR332-issue 3)
- No Load Power: < 0.5 W
- Input Voltage: 80 – 264 VAC / 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (115 VAC): 2.2 A max.
- Input Current (230 VAC): 1.1 A max.
- Leakage Current: < 300 µA
- Switching Frequency: 70 – 130 kHz
- PWM Frequency: 50 – 80 kHz
- Isolation Voltage (Input to Output): 4000 VDC
- Isolation Voltage (Input to GND): 2500 VDC
- Safety Standards: EN / IEC / UL 62368-1
- Agency Approvals: Nemko, UL, C-UL
- CE Mark: Complies with LVD Directive
- Output Voltage Range: 12 V to 58 V
- Output Power (180W): Hold-up Time: 10 ms
- Output Power (120W): Hold-up Time: 16 ms
- Power Factor: > 0.95 (115 VAC), > 0.90 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 1%
- Ripple: 1.0 % max. (24, 30, 48 & 58 V), 2.0 % max. (12 V & 15 V)
