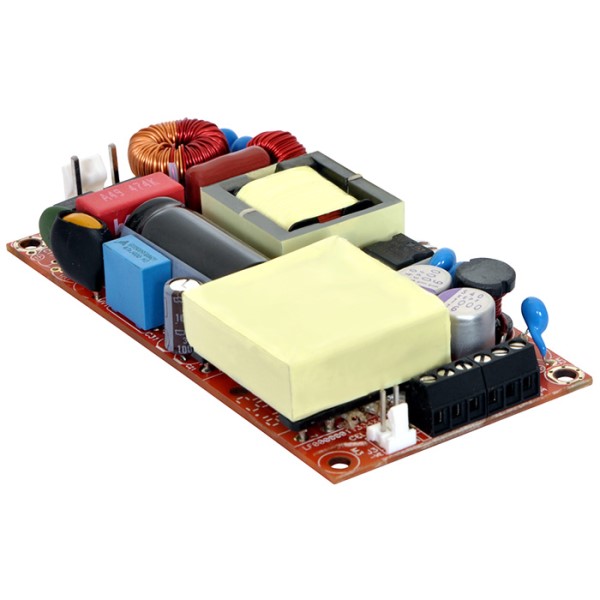

BEL POWER SOLUTIONS ABC1801024L Ultra Low Profile Power Supply
The BEL POWER SOLUTIONS ABC180 series of power supplies provides a compact and efficient solution for a wide range of applications. These ultra-low profile open frame power supplies offer a universal AC input range of 80-264 VAC and deliver up to 180W of output power. With high efficiency and a compact design, the ABC180 series minimizes power loss, enhances reliability, and simplifies thermal management. Ideal for telecom, datacom, industrial equipment, and robotics, these power supplies meet regulatory approvals for environmentally friendly end products. Features include thermal shut-down, a fan output, and a high MTBF.
BEL POWER SOLUTIONS ABC1801024L Ultra Low Profile Power Supply Specifications:
- Form Factor: 4 x 2 x 0.75 Inch
- Output Power: 180 Watts (with forced air cooling)
- Efficiency: Up to 92%
- Operating Temperature: -40 to 70 °C
- Compliance: IEC / EN / UL 62368-1
- Fan Output: 12 V / 0.5 A
- Thermal Shut-Down: Feature
- MTBF: 3.37 million hours (Telcordia -SR332-issue 3)
- No Load Power: < 0.5 W
- Input Voltage: 80 – 264 VAC / 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (115 VAC): 2.2 A max.
- Input Current (230 VAC): 1.1 A max.
- Leakage Current: < 300 µA
- Switching Frequency: 70 – 130 kHz
- Output Voltage: 12 V to 58 V (Refer to Model selection table)
- Hold-up Time: 10 ms (at 180 W)
- Power Factor: > 0.95 (at 115 VAC)
- Line Regulation: ± 0.5% (at 115 VAC)
- Load Regulation: ± 1%
- Ripple: 1.0 % max. (24, 30, 48 & 58 V outputs)
- Output Voltage Adjustment: ± 3%
- Rise Time: 55 ms
- Over Current Protection: > 110%
- Over Voltage Protection: 110 to 140%
- Isolation Voltage: 4000 VDC (Input to Output)
- Agency Approvals: Nemko, UL, C-UL
- CE mark: Complies with LVD Directive
- Operating Temperature Range: -40 to 70 °C
- Storage Temperature Range: -40 to +85 °C
