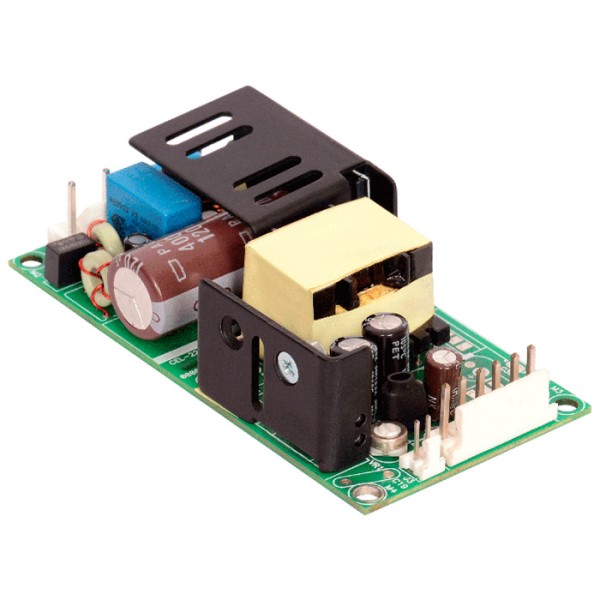

BEL POWER SOLUTIONS ABC401005G 40W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC40 series of open-frame power supplies delivers 40W of output power with a wide 90-264 VAC input range and high power density. Designed for efficiency and reliability, these power supplies minimize power loss in end-use equipment, facilitating easier thermal management and meeting regulatory approvals. Ideal for telecom, datacom, industrial equipment, robotics, and applied computing applications, the ABC40 series offers a compact form factor and multiple output voltage options to meet diverse power requirements. It is RoHS compliant and available with a cover kit accessory.
BEL POWER SOLUTIONS ABC401005G 40W Open Frame Power Supply Specifications:
- Form Factor: 4 x 2 x 1.2 Inch
- Output Power: 40 W
- Efficiency: > 85%
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- No Load Power: < 0.3 W
- Inrush Current: 30 A max. (120 VAC), 60 A max. (230 VAC)
- Leakage Current: < 500 µA (120 VAC), <1000 µA (230 VAC)
- Switching Frequency: 67 kHz
- Output Voltage: 5.1 V
- Max Load: 8.0 A
- Ripple: 1%
- Safety Standards: IEC60950-1, EN 60950-1, UL60950-1, CSA C22.2 No. 60950-1, IEC 62368-1, EN 62368-1
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to +70°C
- Altitude: 10,000 ft (operating), 40,000 ft (non-operating)
Buy the ABC40-1005G BEL POWER SOLUTIONS 40W Open Frame Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS ABC40-1005G power supply securely and reliably online.
Buy Now
