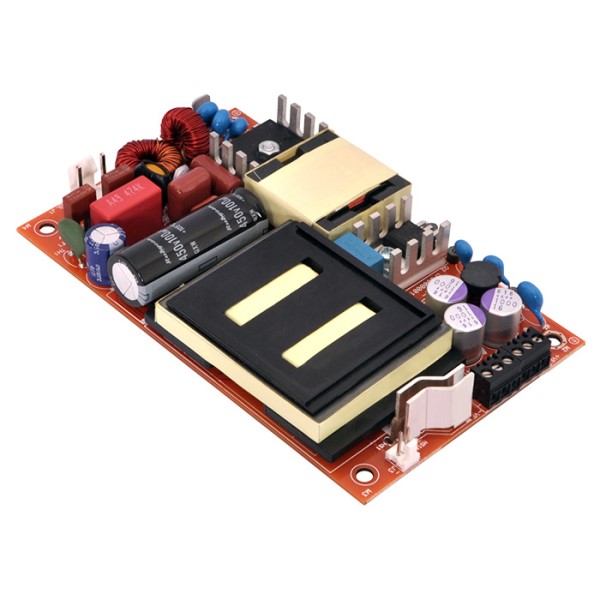

BEL POWER SOLUTIONS ABC2751024L Ultra Low Profile Power Supply
The BEL POWER SOLUTIONS ABC275 series of ultra-low profile open frame power supplies delivers a wide universal AC input range of 80 – 264 VAC, providing up to 275 W of output power with forced air cooling or 160 W with convection cooling. Its high efficiency and power density minimize power loss, enhancing reliability and thermal management. These power supplies are well-suited for a broad range of applications including telecom, datacom, industrial equipment, robotics, and applied computing.
BEL POWER SOLUTIONS ABC2751024L Ultra Low Profile Power Supply Specifications:
- Form Factor: 5 x 3 x 0.75 Inch
- Output Power (Forced Air): 275 Watts
- Output Power (Convection): 160 Watts
- Efficiency: Up to 92%
- Operating Temperature: -40 to 70°C
- Compliance: IEC / EN / UL 62368-1
- Fan Output: 12 V / 0.5 A
- Thermal Shut-Down: Feature
- MTBF: 3.37 million Hours (Telcordia -SR332-issue 3)
- No Load Power: < 0.5 W
- Input Voltage: 80 – 264 VAC / 390 VDC
- Input Frequency: 47-63 Hz
- Input Current (115 VAC): 2.6 A max.
- Input Current (230 VAC): 1.3 A max.
- Leakage Current: < 300 µA
- Touch Current: < 100 µA
- Switching Frequency: 70 – 130 kHz
- PWM Frequency: 50 – 80 kHz
- Isolation Voltage (Input to Output): 4000 VDC
- Isolation Voltage (Input to GND): 2500 VDC
- Safety Standards: EN / IEC / UL 62368-1
- Agency Approvals: Nemko, UL, C-UL
- CE Mark: Complies with LVD Directive
- Operating Temperature Range: -40 to 70°C
- Storage Temperature Range: -40 to +85°C
- Altitude (Operating): 16,000 ft.
- Altitude (Non-operating): 40,000 ft.
