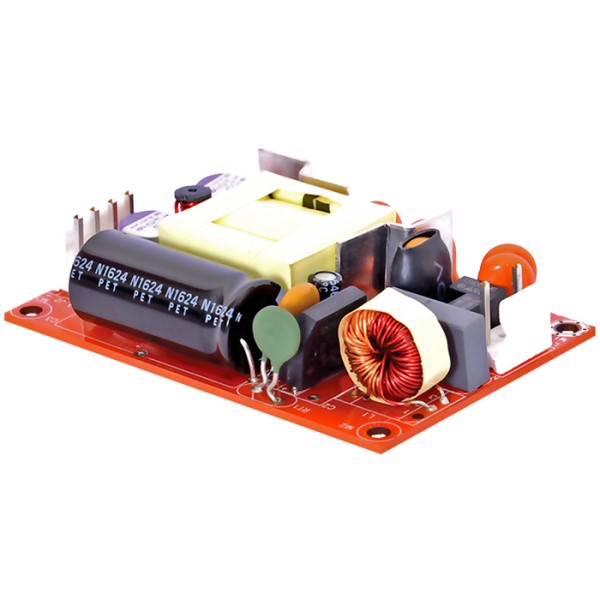

BEL POWER SOLUTIONS ABC411005P 40W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC41 series provides a compact and efficient power solution for a wide range of applications. This 40W open frame power supply boasts a universal AC input range, high power density, and natural convection cooling, minimizing power loss and facilitating thermal management. Its PCB mount option simplifies integration into user assemblies. Ideal for telecom, datacom, industrial equipment, and renewable energy applications, the ABC41 series delivers reliable power with high efficiency and meets regulatory approvals for environmentally friendly designs.
BEL POWER SOLUTIONS ABC411005P 40W Open Frame Power Supply Specifications:
- Input Voltage: 85 - 264 VAC / 390 VDC
- Input Frequency: 47 - 63 Hz
- Input Current (115 VAC): 0.8 A max.
- Input Current (230 VAC): 0.4 A max.
- No Load Power: < 0.3 W
- Inrush Current (115 VAC): 25 A
- Inrush Current (230 VAC): 45 A
- Leakage Current: < 300 µA
- Output Power: 40 W
- Efficiency: 85% Typical
- Hold-up Time: 60 ms (230 VAC, max. load)
- Line Regulation: ± 0.5%
- Load Regulation: ± 1%
- Transient Response: < 5 ms
- Set Point Tolerance: 2% (3% for 5 V model)
- Over Current Protection: > 110%
- Over Voltage Protection: 110 to 140%
- Cooling: Convection
- Operating Temperature: -40 to 70 °C
- Storage Temperature: -40 to 85 °C
- MTBF: 2 million hours
- Dimensions: 76.2 x 50.8 x 19.05 mm (3 x 2 x 0.75 inches)
Buy the ABC41-1005P BEL POWER SOLUTIONS 40W Open Frame Power Supply | myMectronic
Purchase the BEL POWER SOLUTIONS ABC41-1005P securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS ABC411005P?
You can click on the BUY or RFQ button to purchase ABC411005P from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ABC411005P?
You can download the ABC411005P datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of ABC411005P?
BEL POWER SOLUTIONS
