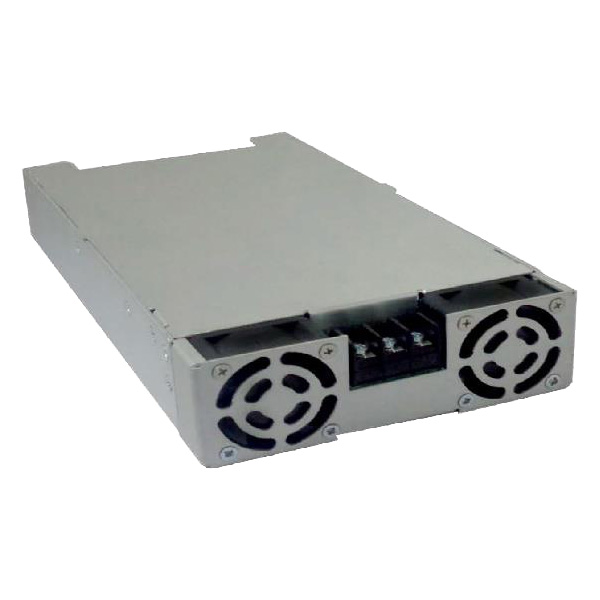

BEL POWER SOLUTIONS ABE10001T24 1000W Power Supply
The BEL POWER SOLUTIONS ABE1000 series power supplies deliver up to 1000W of output power with a wide universal AC input range. These power supplies are engineered for high efficiency and power density, minimizing power loss and facilitating easier thermal management. Ideal for medical, telecom, datacom, industrial equipment, and POE applications, the ABE1000 series offers features like current sharing, peak power capability, and a 5VDC standby output. They are suitable for N+1 redundant power supply configurations and meet regulatory approvals for environmentally-friendly end products.
BEL POWER SOLUTIONS ABE10001T24 1000W Power Supply Specifications:
- Form Factor: 5 x 9.51 x 1.61 in (127 x 241.5 x 41 mm)
- Input Voltage: 85 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current: 11 A max. (120 VAC), 5.5 A max. (240 VAC)
- Input Protection: F16 A / 250 V
- No Load Power: 3 W typ.
- Inrush Current: 25 A max. (240 VAC)
- Leakage Current: < 400 µA (240 VAC / 50 Hz)
- Touch Current: < 100 µA
- Power Factor: 0.98 (120 VAC), 0.95 (240 VAC)
- Switching Frequency: 85 kHz typical (PFC converter), 100 kHz typical (Resonant converter)
- Output Voltage: 12 V to 58 V (Refer to Model Selection table for details)
- Standby Output Voltage: 5 V
- Output Power: 1000 W (Fan Cooled, Peak 1200 W for 1 ms)
- Efficiency: 88 % Typical (120 VAC), 93 % (240 VAC)
- Hold-up Time: 8 ms (120 VAC / 240 VAC)
- Line Regulation: ± 0.5 %
- Load Regulation: ± 1.0 %
- Transient Response: < 10 %, recovery time < 5 ms (50% to 100% load change)
- Voltage Adjustment: ± 3 %
- Set Point Tolerance: ± 1%
- Rise Time: <100 ms
- Over Current Protection: Hic-Up Type, autorecovery (120 to 150 %)
- Over Voltage Protection: Latch Type, AC Power to be recycled for recovery (114%)
- Short Circuit Protection: Short term, autorecovery
- Over Temperature Protection: Autorecovery (130-140°C primary heat sink)
- Current Share: Up to 3 supplies connected in parallel (optional)
- Cooling: Fan cooled
- Operating Temperature: -40 to +70°C
- Storage Temperature: -40 to +85°C
- Altitude: Operating: 16,000 ft., Non-operating: 40,000 ft.
