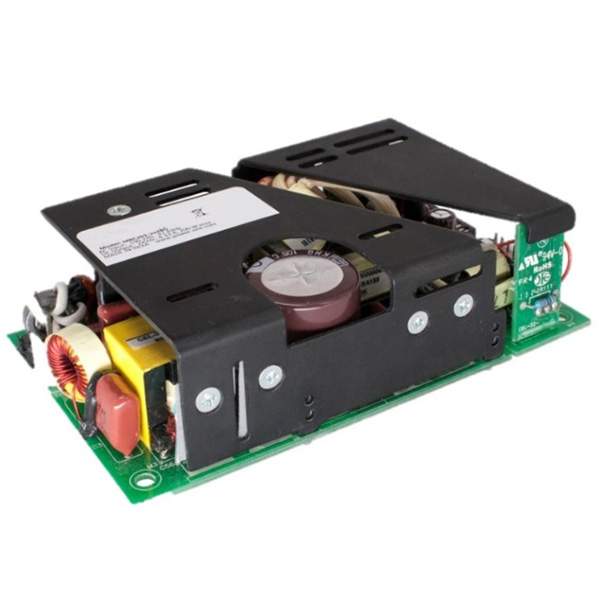

BEL POWER SOLUTIONS ABC2011030G 200W Open Frame Power Supply
The BEL POWER SOLUTIONS ABC201 series provides a compact and efficient power solution for a wide range of applications including telecom, datacom, industrial equipment, and more. With a 200W output power and a universal input voltage, the ABC201-1030G delivers reliable performance while minimizing power loss and facilitating thermal management. It is designed to meet regulatory approvals for environmentally-friendly end products and offers features like remote sense and output voltage adjustability for flexible system integration. The unit is available with Class I or Class II earthing options and a metal cover kit is available as an accessory.
BEL POWER SOLUTIONS ABC2011030G 200W Open Frame Power Supply Specifications:
- Input Voltage: 90 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 2.4 A max.
- Input Current (230 VAC): 1.2 A max.
- Inrush Current (120 VAC): 35 A max.
- Inrush Current (230 VAC): 65 A max.
- Leakage Current: < 150 µA (120 VAC), < 300 µA (230 VAC)
- No Load Power: 0.8 W
- Switching Frequency: 35 to 250 kHz (typical 90 kHz)
- Output Voltage: 5 V to 48 V
- Output Power: 160 to 200 W
- Fan Output: 12 V @ 5 A
- Efficiency: > 84% (120 VAC), > 86% (230 VAC)
- Hold Up Time: 10 ms
- Power Factor: 0.99 (120 VAC), 0.95 (230 VAC)
- Line Regulation: ± 0.5%
- Load Regulation: ± 2.0%
- Transient Response: < 10%, recovery time < 5 ms
- Rise Time: < 100 ms
- Set Point Accuracy: ± 1%
- Output Voltage Adjustment: ± 3%
- Over Current Protection: 110% typical above rating
- Over Voltage Protection: 110 to 150%
- Short Circuit Protection: Automatic recovery
- Isolation Voltage: Min. 4000 VDC
- Safety Standards: EN / IEC / UL 62368-1 (Ed.3)
- Agency Approvals: Nemko, UL
- CE mark: Complies with LVD Directive
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to 85° C
- Humidity: Non Condensing, 95%
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- Reliability: 1.6 million hours (MTBF)
