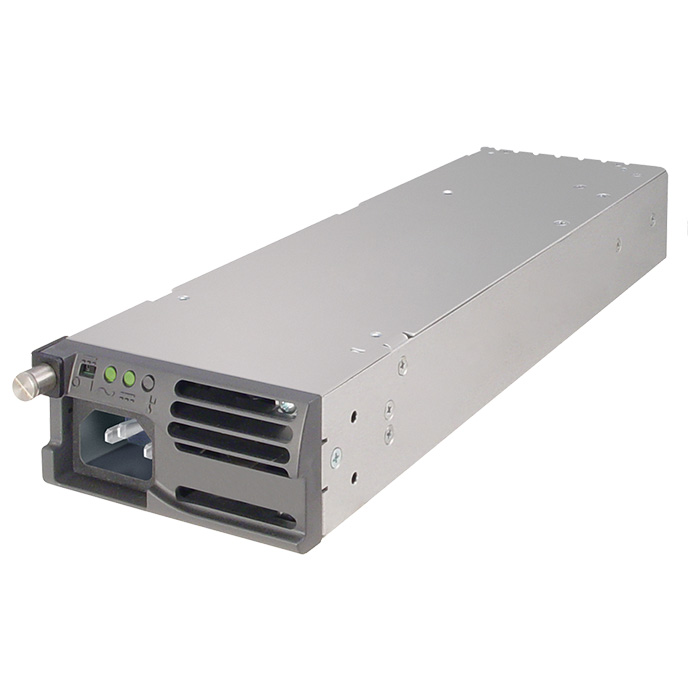

BEL POWER SOLUTIONS FNP100048G Power Factor Corrected Front End
The BEL POWER SOLUTIONS FNP1000-48G is a PFC front end providing a 48VDC output for telecom, datacom, and distributed power applications. Its compact size allows for hotswap redundant systems, and its internal fan and cooling design ensure reliable operation. Key features include universal input voltage range (90-264 VAC), high density (10.5 to 16.1 W/in³), and droop current share with ORing FETs. The unit also offers I²C interface for status and control, making it suitable for a wide range of industrial applications.
BEL POWER SOLUTIONS FNP100048G Power Factor Corrected Front End Specifications:
- Nominal Output Voltage: 48 VDC
- Adjustment Range: 44 to 50.5 VDC
- Maximum Output Current: 21 Amps
- Line Regulation: 0.17%
- Load Regulation: 8%
- Ripple & Noise pk-pk %: 1%
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 Hz
- Hold-up Time: 16 ms (FNP1000-48 model)
- Efficiency: 88%
- Minimum Load: 0 A
- Output Power: 1006 W
- Overshoot: 3%
- Transient Response: 400 µs
- Output Deviation: 2%
- Turn-On Delay: 1.5 Sec
- Overvoltage Protection: 571-60 V
- Current Limit: 22 A
- Short-Circuit Protection: Power supply recovers when short is removed
- Overtemperature Protection: LED indicates fault condition
- Fan Failure Warning: Open-collector signal
