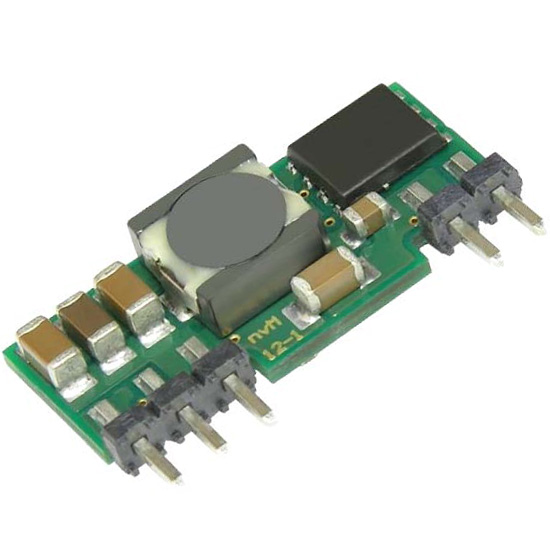

BEL POWER SOLUTIONS YNV12T05G DC-DC Non-Isolated Converter
The BEL POWER SOLUTIONS YNV12T05-G is a non-isolated DC-DC converter designed for Intermediate Bus Architectures where point-of-load power delivery is essential. It delivers up to 5A of output current with a regulated output voltage ranging from 0.7525 to 5.5 VDC. The converter features a synchronous buck converter topology, start-up into pre-biased output, and no minimum load requirement. Its exceptional thermal performance, achieved through advanced circuit and packaging techniques, minimizes impedance to system airflow and enhances cooling. The YNV12T05-G is suitable for telecommunications, data communications, and distributed power architectures, offering high reliability with an MTBF of approximately 71.8 million hours.
BEL POWER SOLUTIONS YNV12T05G DC-DC Non-Isolated Converter Specifications:
- Input Voltage: 9.6 - 14 VDC
- Output Current: Up to 5 A (27.5 W)
- Output Voltage: 0.7525 - 5.5 VDC
- Package: Single-in-Line (SIP)
- Dimensions: 0.90” x 0.44” x 0.240” (22.86 mm x 11.16 mm x 6.10 mm)
- Weight: 0.07 oz [2.00 g]
- Operating Temperature: -40 °C to 85 °C
- Efficiency: Up to 90.0%
- Switching Frequency: 480 kHz
- Input Under Voltage Lockout: 9.2 VDC
- Input No Load Current: 20 mA @ 0.7525 VDC output
- Output Voltage Trim Range: By external resistor
- Flammability Rating: UL94, V-0
