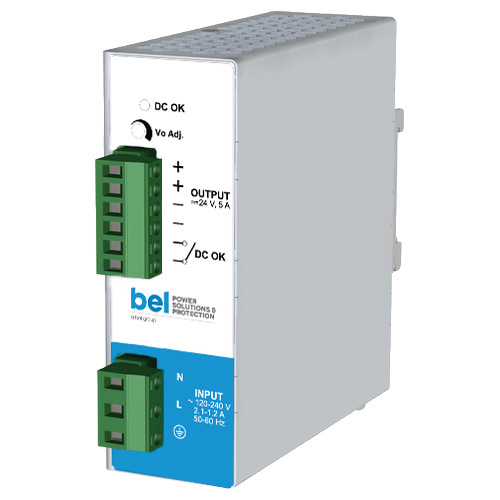

BEL POWER SOLUTIONS LDN12048P DIN Rail Switching Power Supply
The BEL POWER SOLUTIONS LDN120 series are single-phase DIN Rail switching power supplies suitable for a wide range of industrial applications, including process control, automation, and communication equipment. These power supplies offer high efficiency, excellent reliability, and a compact aluminum enclosure. They are Class I isolation devices designed for DIN rail mounting and installation within a protective enclosure, featuring pluggable connectors for ease of use and a robust design for demanding environments.
BEL POWER SOLUTIONS LDN12048P DIN Rail Switching Power Supply Specifications:
- Input Voltage Range: 90 - 264 VAC or 110 - 345 VDC
- Output Voltage: 48 V (adjustable)
- Output Current: 2.5 A
- Output Power: 120 W
- Efficiency: up to 86%
- Overload Protection: 150%
- Operating Temperature: -40°C to +70°C (up to 60°C with no derating)
- Dimensions: 40 x 115 x 110 mm
- Mounting Rail: IEC 60715/H15/TH35-7.5(-15)
- Connection Terminals: Screw type pluggable (24 - 12 AWG) 2.5 mm²
- Case Material: Aluminum
- RoHS Compliant: Yes
- Input AC Current: 2.1 A (at 120 VAC)
- Input DC Current: 1.4 A (at 345 VDC)
- Hold-up Time: ≥ 50 ms (at 240 VAC)
- Ripple & Noise: ≤ 60 mVpp (at 20 MHz BW)
- Isolation: Input to Output: 4.2 kVDC, Input to Ground: 2.2 kVDC, Output to Ground: 0.75 kVDC
