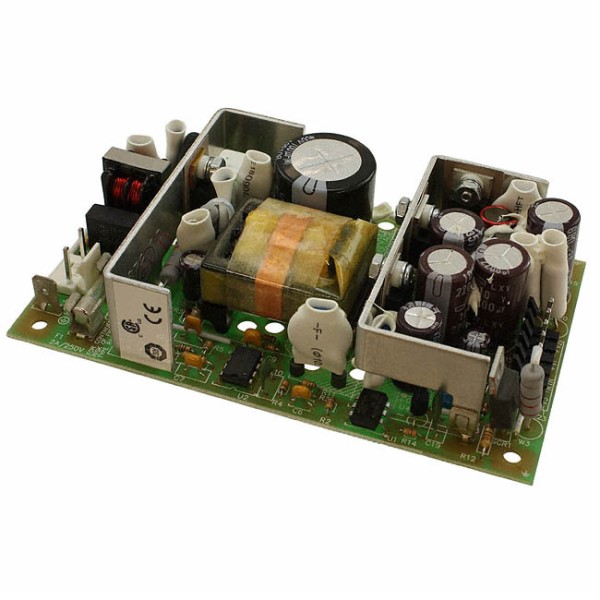

BEL POWER SOLUTIONS MAP403105 Power Supply Module
The Bel Power Solutions MAP40-3105 power supply is a versatile and cost-effective solution for industrial applications. Its board-only design minimizes size and weight, while the universal input voltage range (90-264 VAC) provides flexibility in various environments. The MAP40-3105 series complies with EMC standards and is RoHS compliant, ensuring reliable and environmentally responsible operation. It's ideal for applications requiring a compact, efficient, and adjustable power supply.
BEL POWER SOLUTIONS MAP403105 Power Supply Module Specifications:
- Input Voltage - AC: 90-264 VAC
- Input Frequency: 47-63 Hz
- Brown Out Protection: 85 VAC
- Hold-up Time: 15 ms
- Input Current: 1.2 ARMS
- Input Protection: Internally located AC input line fuse
- Inrush Surge Current: 38 APK
- Operating Frequency: 23-30 kHz
- Efficiency: 70% typical
- Minimum Loads: 0.15A (MAP30-1005), 0.26A (MAP42-1012), 0.05A (MAP42-1024), 0.0A (multiple output models)
- Ripple and Noise: See Model Selection Chart
- Output Power: 40 Watts
- Overshoot / Undershoot: <1%
- Regulation: See regulation graphs
- Transient Response: <500 μs
- Turn-on Delay: 1-2 Sec
- Turn-on Rise Time: <20 ms
- Overvoltage Protection: 5.8V (MAP30-1005/MAP42-1005), 20.0V (MAP42-1012), 32.0V (MAP42-1024)
- Overload Protection: 130%
- Remote Sense: 250 mV
Buy the MAP40-3105 BEL POWER SOLUTIONS Power Supply Module | myMectronic
Purchase the BEL POWER SOLUTIONS MAP40-3105 Power Supply Module securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MAP403105?
You can click on the BUY or RFQ button to purchase MAP403105 from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MAP403105?
You can download the MAP403105 datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MAP403105?
BEL POWER SOLUTIONS
