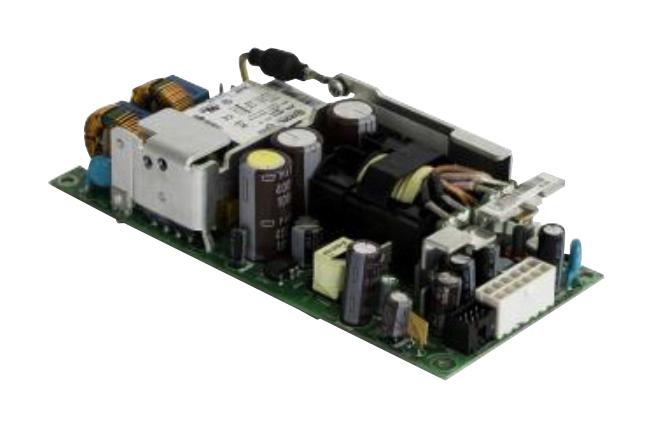

BEL POWER SOLUTIONS MBC4011024 Medical Power Supply
The MBC401 Series offers 400 W regulated power suitable for medical and industrial applications, featuring wide input voltage range 90-264 VAC, high efficiency up to 94%, and low standby power below 0.5 W. Designed for various medical equipment including diagnostic, imaging, respiratory, and dental devices, these power supplies come in multiple compact packages with standard output voltages of 12, 24, 28, 36, and 48 VDC, plus auxiliary and standby outputs. They comply with international safety standards, offer protection features like over-temperature, over-current, and short circuit, and include remote control signals, making them ideal for demanding healthcare and industrial environments. They support operation at 4000 m without de-rating and feature active PFC, EN 61000-3-2 Class C compliance, and BF-rated protected parts.
BEL POWER SOLUTIONS MBC4011024 Medical Power Supply Specifications:
- Input Voltage: 90-264 VAC, DC 12V to 28V, 50/60 Hz
- Output Power: 400 W rated, peak 440 W
- Output Voltages: 12 VDC, 24 VDC, 28 VDC, 36 VDC, 48 VDC
- Standby & Auxiliary Outputs: +5V, 2A; +12V, 1A
- Efficiency: Up to 94%
- Protection: Over temperature, over current, short circuit, BF-rated, 2xMoPP patient protection
- Dimensions: 84.4 x 170.5 x 41.0 mm for perforated and vented models
- Operating Temperature: -20°C to +50°C, de-rates above 50°C
- Safety Standards: IEC 60601-1, EN 60601-1, UL, CSA, CE
- Compliance: EN 61000-3-2 Class C, EN 61000-3-3, IEC/EN 60601-1, RoHS 3
- Input Current: 5.0 A at 115 V, 2.5 A at 230 V
- Peak Power: 440 W, Continuous Operation: 400 W at 50°C
Buy the Buy Bel Power Solutions MBC401 Series 400 W Power Supply Part Number MBC4011024 Online
Purchase the Bel Power Solutions MBC4011024 power supply online today for high-efficiency, medical-grade power delivery with wide input voltage compatibility, multiple output options, and comprehensive safety features. Designed for demanding healthcare and industrial applications, this power supply provides 400 W regulated power with peak capacity of 440 W, ensuring stable operation in diagnostic, imaging, respiratory, and dental equipment. Compact and robust, it features protection against over-temperature, over-current, short circuit, and complies with international safety standards. Enhance your device performance and reliability by ordering online now, with fast delivery and trusted quality assurance.
Order your Bel Power Solutions MBC4011024 power supply today and ensure reliable, medical-grade performance for your healthcare and industrial projects.
