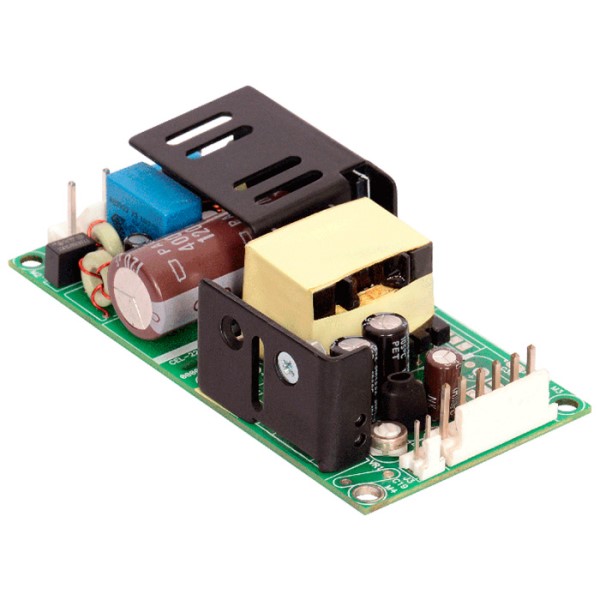

BEL POWER SOLUTIONS MBC403000G Medical Power Supply
The BEL POWER SOLUTIONS MBC40 series provides a reliable and efficient power solution for medical equipment. This open-frame power supply delivers 40W of output power with a wide universal input voltage range (90-264 VAC). Designed and approved to meet stringent medical standards (EN/IEC 60601-1), the MBC40 series offers 2 x MOPP isolation for enhanced safety in Class I & Class II applications. Ideal for dialysis, monitoring, surgical devices, and home health equipment, this power supply ensures stable and safe power delivery for critical medical devices. It boasts ultra-high efficiency (>85%) and low leakage current (< 250 µA), contributing to energy savings and patient safety.
BEL POWER SOLUTIONS MBC403000G Medical Power Supply Specifications:
- input_voltage: 90 - 264 VAC
- input_frequency: 47 to 400 Hz
- input_current: 0.85 A max (120 VAC), 0.45 A max (230 VAC)
- no_load_power: < 0.3 W (single output), < 0.5 W (multi output)
- inrush_current: 30 A max (120 VAC), 60 A max (230 VAC)
- leakage_current: < 140 µA (120 VAC), < 250 µA (230 VAC)
- switching_frequency: Typical 67 kHz
- efficiency: Typical > 85%
- hold_up_time: >10 ms
- output_power: 40 W (derate to 80% from 90 VAC to 80 VAC input)
- line_regulation: ± 0.3%
- load_regulation: ± 5%
- transient_response: < 5 ms
- set_point_tolerance: ± 10% (V1), ± 5% (V2 & V3)
- output_voltage_adjustment: ± 10% (V1)
- over_current_protection: Typical above rating (130%)
- over_voltage_protection: Typical for V1 only (130%)
- short_circuit_protection: Short term, autorecovery
- cooling: Convection
- operating_temperature: -20 to 70°C
- storage_temperature: -40 to +70°C
- relative_humidity: Non Condensing (95%)
- altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- mtbf: 1.87 million hours
- isolation_voltage: 4000 VAC (Input to Output, 2MOPP), 1500 VAC (Input to Ground, 1MOPP), 500 VAC (Output to Ground, 1MOPP)
- safety_standards: EN 60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1, CE mark
