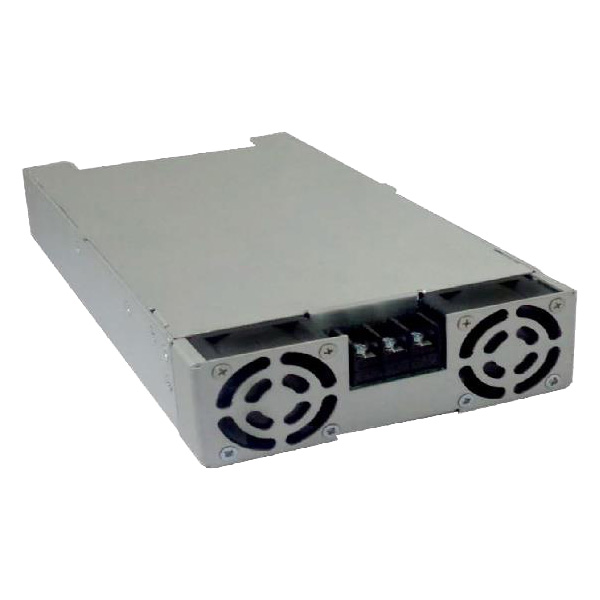

BEL POWER SOLUTIONS MBE10001T48 Medical Power Supply
The MBE1000 series from BEL POWER SOLUTIONS provides a robust and reliable power solution for medical applications. These power supplies are designed to meet the stringent requirements of medical standards (EN/IEC 60601-1) and are suitable for BF (Body Floating) applications. They are ideal for a wide range of medical equipment including monitoring devices, home health equipment, surgical devices, hospital beds, and therapy devices. The MBE1000-1T48 model delivers 1000W of output power at 48V and offers features like dual fusing, current sharing, and a power good/fail signal for enhanced system reliability.
BEL POWER SOLUTIONS MBE10001T48 Medical Power Supply Specifications:
- Form Factor: 5 x 9.51 x 1.61 in (127 x 241.5 x 41 mm)
- Approved to: EN 60601
- Output Voltage: 12 V to 58 V
- Standby Output Voltage: 5 V
- In Built Fan Output: 12 V
- Power Good / Power Fail Signal: TTL signal
- Suitable for BF application: Yes
- High Voltage Output Range: Up to 58 VDC
- N+1 Redundant Power Supply: Yes
- Input Voltage: 85 – 264 VAC / 120 – 390 VDC
- Input Frequency: 47 – 63 Hz
- Input Current (120 VAC): 11 A max.
- Input Current (240 VAC): 5.5 A max.
- Input Protection: F16 A / 250 V
- No Load Power: 3 W typ.
- Inrush Current (240 VAC): 25 A max.
- Leakage Current (240 VAC / 50 Hz): < 400 µA
- Touch Current: < 100 µA
- Power Factor (120 VAC): 0.98
- Power Factor (240 VAC): 0.95
- Switching Frequency (PFC converter): Variable, 85 kHz typical
- Switching Frequency (Resonant converter): Variable, 100 kHz typical
- Efficiency (120 VAC): 88 % Typical
- Efficiency (240 VAC): 93 %
- Hold-up Time (120 VAC / 240 VAC): 8 ms
- Line Regulation: ± 0.5 %
- Load Regulation: ± 1.0 %
- Transient Response: < 10 %, recovery time < 5 ms
- Voltage Adjustment: ± 3 %
- Set Point Tolerance: ± 1%
- Over Current Protection: Hic-Up Type, autorecovery
- Over Voltage Protection: Latch Type, AC Power to be recycled for recovery
- Short Circuit Protection: Short term, autorecovery
- Over Temperature Protection: Autorecovery, 130-140°C primary heat sink
- Current Share: Up to 3 supplies connected in parallel (optional)
- Cooling: Fan cooled
- Output Power (Peak): 1000 W
- Altitude (Operating): 16,000 ft.
- Altitude (Non-operating): 40,000 ft.
- MTBF: 3.37 million hours
