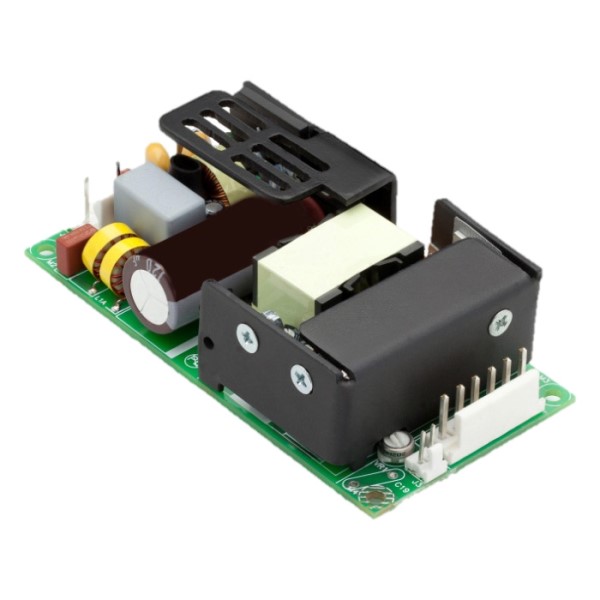

BEL POWER SOLUTIONS MBC601015G Medical Power Supply
The BEL POWER SOLUTIONS MBC60-1015G is a versatile open-frame power supply specifically engineered for medical equipment. Delivering 60W of output power at 15V, it caters to diverse applications like monitoring devices, surgical equipment, home health devices, dialysis machines, and ultrasound systems. Designed to meet the stringent requirements of medical safety standards (IEC 60601-1), it offers 2x MOPP isolation and low leakage current for enhanced patient protection. Its compact size, high efficiency (>85%), and wide input voltage range (90-264 VAC) make it an ideal solution for medical device manufacturers seeking a reliable and efficient power source.
BEL POWER SOLUTIONS MBC601015G Medical Power Supply Specifications:
- Input Voltage: 90 - 264 VAC
- Input Frequency: 47 to 400 Hz
- Input Current: 1.5 A max. (120 VAC), 0.75 A max. (230 VAC)
- No Load Power: < 0.3 W (Single output), < 0.5 W (Multi output)
- Inrush Current: 30 A max. (120 VAC), 60 A max. (230 VAC)
- Leakage Current: < 140 µA (120 VAC), < 250 µA (230 VAC)
- Switching Frequency: 67 kHz
- Efficiency: Typical > 85%
- Hold Up Time: >10 ms
- Output Power: 50 - 65 W (Single output), 60 W (Triple output)
- Line Regulation: +/-0.3%
- Load Regulation: +/- 5%
- Transient Response: < 5 ms
- Output Voltage Adjustment: +/- 10% (V1)
- Over Current Protection: 130%
- Over Voltage Protection: 130%
- Cooling: Convection
- Isolation Voltage: 4000 VAC (Input to Output), 1500 VAC (Input to Ground), 500 VAC (Output to Ground)
- Safety Standards: EN 60601-1, IEC 60601-1 (ed.3)
- Agency Approvals: Nemko, UL, C-UL
- Altitude: Operating: 10,000 ft, Non-Operating: 40,000 ft
- Operating Temperature: -20 to 70°C
- Storage Temperature: -40 to +85°C
