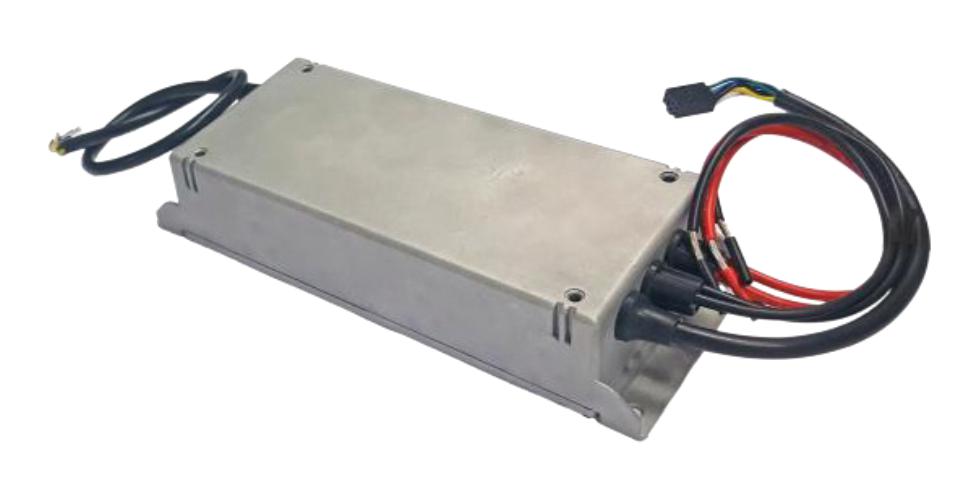

BEL POWER SOLUTIONS MBS4001024 Industrial Power Supply
The ABS/MBS400 Series offers sealed IP67-rated 400 W AC-DC power supplies with wide input voltage range of 90 - 264 VAC. Suitable for industrial and medical environments, these power supplies feature regulated outputs of 12, 24, 36, or 48 VDC, high efficiency up to 94%, and full protection options including over temperature, OV, OC, and SC. They come in compact form factors, with optional heatsinks, and support control signals like Power Good, remote On/Off, and remote sense. Certified for IT and medical safety standards, they are ideal for harsh or contact-based thermal applications.
BEL POWER SOLUTIONS MBS4001024 Industrial Power Supply Specifications:
- Power Output: 400 W (peak up to 440 W for 10 s)
- Input Voltage: 90 - 264 VAC, 170 - 270 VDC
- Input Frequency: 47 - 60 Hz
- Efficiency: Up to 94%
- Outputs: 12 V, 24 V, 36 V, 48 VDC with optional standby +5 VSB and auxiliary 12 V
- Dimensions: 83.0 x 212.0 x 42.0 mm (without heatsink), 83.0 x 212.0 x 70.1 mm (with heatsink)
- Protection Features: Over temperature, OV, OC, SC; 2x MoPP safety rating; IP67 sealed and potted
- Control Signals: Power Good, remote On/Off, remote sense (+RS)
- Compliance: IEC 60601-1 medical safety, UL/IEC 60950-1, EN61000-3-2, EN61000-3-3, EMC compliant
- Ambient Temperature Range: -30°C to +70°C (derating applies)
- Failures Mode: Auto-recovering hiccup on input faults and overloads
- Additional Features: Optional heatsink, contact thermal conduction
Buy the Bel Power Solutions MBS4001024 – Reliable Power Supply for Industrial Applications
Purchase the Bel Power Solutions MBS4001024 today for reliable, high-efficiency power delivery in industrial, medical, and harsh environment applications. This 400 W sealed IP67 power supply features wide input voltage compatibility, multiple output voltages including 12, 24, 36, and 48 VDC, and comprehensive protection features such as over temperature, over voltage, and short circuit. Its compact design with optional heatsink ensures thermal management even in contact-based applications. Certified to meet international safety standards, it guarantees safe, stable, and durable operation in demanding environments, making it an ideal choice for professional installation and aerospace applications.
Get Bel Power Solutions MBS4001024 today—built for precision and long-lasting durability in industrial and medical environments.
Frequently Asked Questions
Where can I buy BEL POWER SOLUTIONS MBS4001024?
You can click on the BUY or RFQ button to purchase MBS4001024 from an authorized BEL POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MBS4001024?
You can download the MBS4001024 datasheet or visit the BEL POWER SOLUTIONS website for support.
Who is the manufacturer of MBS4001024?
BEL POWER SOLUTIONS
