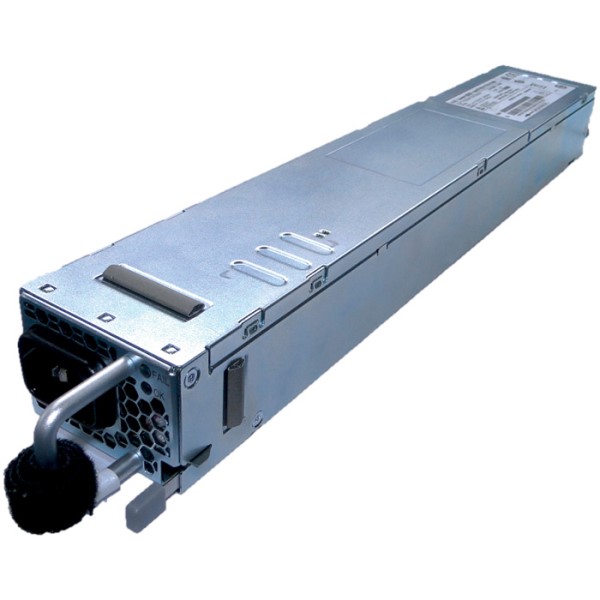

BEL POWER SOLUTIONS PET130012054NA 1300W 12VDC Power Supply
The PET1300-12-054NA is a fully DSP-controlled, highly efficient front-end power supply from BEL POWER SOLUTIONS, ideal for demanding server, network, and high-availability applications. It utilizes resonance-soft-switching technology and interleaved power trains to minimize component stress and maximize efficiency. With a wide input voltage range and minimal derating, this power supply ensures consistent power availability. It is fan-cooled and designed for integration with matching airflow paths, offering features like active power factor correction, hot-plug capability, and parallel operation with current sharing. The unit also includes a 4K byte EEPROM for user information and comprehensive protection features (OTP, OCP, OVP, SCP).
BEL POWER SOLUTIONS PET130012054NA 1300W 12VDC Power Supply Specifications:
- Power Level: 1300 W
- Output Voltage: 12 VDC
- Input Voltage Range: 90 – 264 VAC
- Efficiency: Up to 94.0%
- Standby Output: 10 W (3.3 V)
- Hot-Plug Capability: Yes
- Parallel Operation: Yes
- Density: 30.25 W/in³
- Dimensions: 321.5 x 54.5 x 40 mm
- Communication Protocol: Power Management Bus
- Protection: OTP, OCP, OVP, SCP
- EEPROM: 4K Bytes
- LEDs: 2 Status LEDs (FAIL, OK)
- Safety Standards: UL/CSA60950-1, IEC / EN 60950-1
- Input Frequency: 47-63 Hz
- Power Factor: 0.95
- Input Voltage Turn-on: 85 VAC
- Input Voltage Turn-off: 83 VAC
- Output Ripple Voltage: 180 mVpp
- Dynamic Load Regulation: -0.6 to +0.6 V
- Recovery Time: 0.5 ms
- Start-up Time: 2 s
