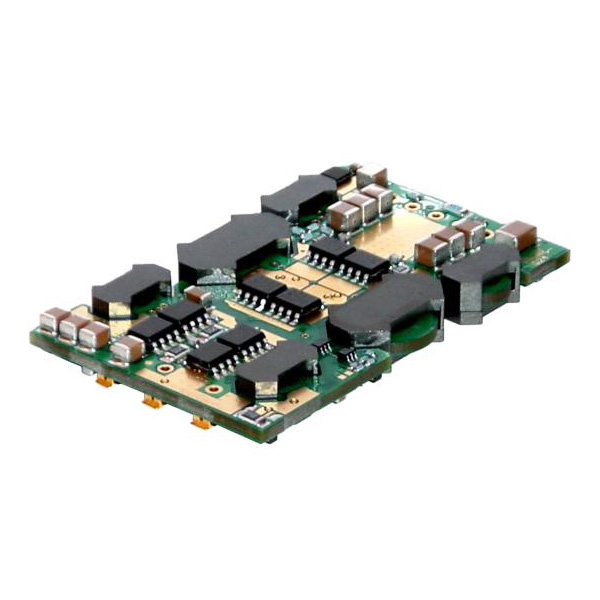

BEL POWER SOLUTIONS Q24S15050NS00 15A DC-DC Converter
The BEL POWER SOLUTIONS Q24S15050-NS00 is a surface-mounted DC-DC converter designed for demanding applications in telecommunications, data communications, and wireless servers. This quarter brick converter delivers up to 15A with high efficiency (up to 88.5%) and a low profile (0.26”). It incorporates patent-pending circuit and packaging techniques for excellent thermal performance and reliability. Key features include an on-board LC input filter, fixed-frequency operation, remote output sense, and output voltage trim capabilities. The converter is fully protected and meets UL/CSA60950-1, IEC60950-1, and EN60950-1 standards.
BEL POWER SOLUTIONS Q24S15050NS00 15A DC-DC Converter Specifications:
- Absolute Maximum Ratings - Input Voltage: 0-40 Vdc
- Absolute Maximum Ratings - Operating Ambient Temperature: -40 to 85 °C
- Absolute Maximum Ratings - Storage Temperature: -55 to 125 °C
- Operating Input Voltage Range: 18-36 Vdc
- Input Under Voltage Lockout: 16-17.5 Vdc
- Input Voltage Ripple Rejection: TBD dB
- Output Current Range: 0-15 Adc
- Current Limit Inception: 16.5-20 Adc
- RMS Short-Circuit Current: 5.3 Arms
- I/O Isolation Voltage: 2000 Vdc
- Isolation Capacitance: 230 ρF
- Isolation Resistance: 10 MΩ
- Switching Frequency: 435 kHz
- Output Voltage Trim Range: -20 to +10 %
- Output Over-Voltage Protection: 117-127 %
- Over-Temperature Shutdown: 118 °C
- Auto-Restart Period: 100 ms
- Turn-On Time: 2.5 ms
- Input No Load Current: 130 mAdc
- Input Reflected-Ripple Current: 6 mAPK-PK
- Output Voltage Set Point (no load): 4.925-5.075 Vdc
- Output Regulation: ±2 to ±5 mV
- Output Ripple and Noise: 30-50 mVPK-PK
- Efficiency (100% Load): 88.5 %
- Efficiency (50% Load): 88.5 %
- Low Profile: 0.26” (6.6 mm)
- Weight: 1 oz (28 g) typical
- Footprint: 1.45” x 2.30”
