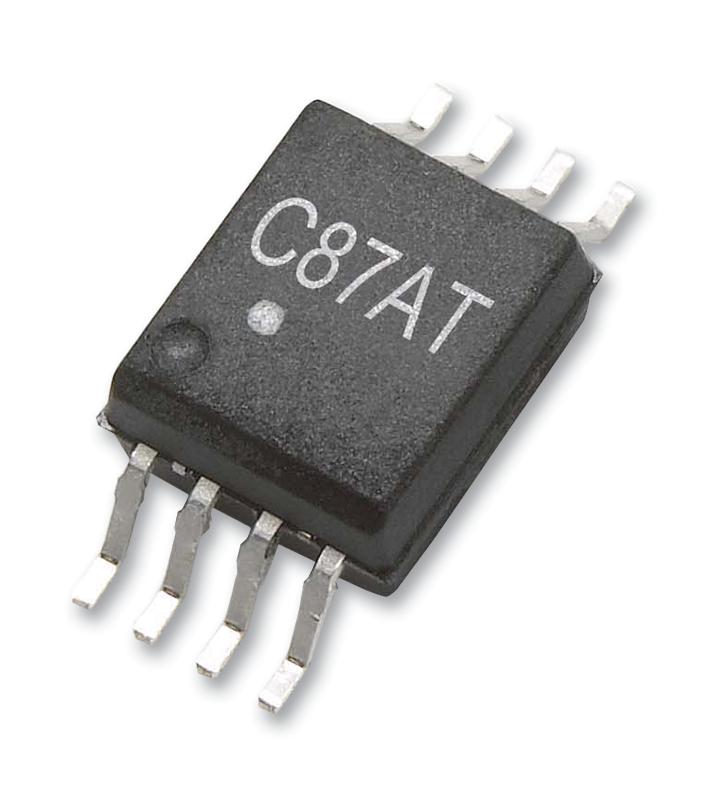

BROADCOM ACPLC87AT000E High Precision Isolation Sensor
The ACPL-C87AT/C87BT isolation sensors utilize advanced optical coupling technology, sigma-delta ADC, and fully differential circuits to offer superior noise rejection, high accuracy, and stability for high precision DC voltage sensing. Designed for automotive and industrial applications, they operate with full span of 2.46 V input, high input impedance, and feature a shutdown for power saving. Their high common-mode transient immunity (15kV/μs) and compact SO-8 package meet worldwide safety standards, making them ideal for motor drives, battery monitoring, and high-noise environments.
BROADCOM ACPLC87AT000E High Precision Isolation Sensor Specifications:
- Gain: +/-0.5% (ACPL-C87BT) and +/-1% (ACPL-C87AT) at 25°C
- Input Offset Voltage: -0.3 mV
- Non Linearity: 0.05%
- Gain Drift: 25 ppm/°C
- Bandwidth: 100 kHz
- Input Range: 0 to 2V
- Operating Temperature: -40°C to +125°C
- Isolation Voltage: 1414 Vpeak
- Common-Mode Transient Immunity: 15 kV/μs
- Shutdown feature for power saving
- Package: Surface Mount SO-8
- Certification: UL1577, CSA, IEC/EN 60747-5-5
- Maximum Working Insulation Voltage: 1414 Vpeak
- Total System Error: approximately 0.4% to 2.8%
Buy the Avago Series High Precision DC Voltage Isolation Sensor: ACPL-C87AT
Order the Avago high-precision isolation sensor ACPL-C87AT today through our online store. This compact, fully differential galvanic isolator offers superb noise immunity, high temperature stability, and advanced optical coupling technology. Perfect for automotive motor drives, battery management systems, or any high noise industrial environment, this sensor delivers reliable voltage sensing with high accuracy. Enjoy fast delivery, genuine parts, and technical support when you purchase online now—optimize your system with confidence and ensure safety compliance effortlessly.
Buy Avago ACPL-C87AT high-precision isolation sensor now and experience unmatched accuracy and noise immunity for your automotive and industrial voltage monitoring needs.
Frequently Asked Questions
Where can I buy BROADCOM ACPLC87AT000E?
You can click on the BUY or RFQ button to purchase ACPLC87AT000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLC87AT000E?
You can download the ACPLC87AT000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLC87AT000E?
BROADCOM
