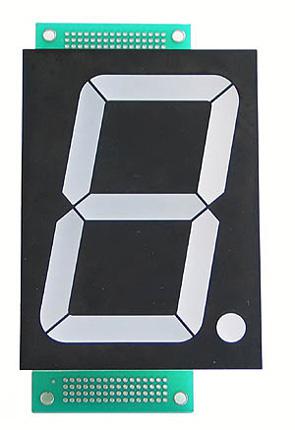

BROADCOM HDSP5501 Seven Segment Display
The HDSP-5501 from Avago is a high-efficiency red LED seven-segment display with 14.2mm digits, designed for viewing up to 7 meters. It features high luminous intensity of 3700mcd at 60mA, a forward voltage of 2.1V, and a peak wavelength of 635nm for vivid display. The device has an aggressive ±50° viewing angle, evenly illuminated segments with mitered corners, and industry-standard DIP leads on 2.54mm centers. Perfect for industrial automation, LED signage, portable electronics, and instrumentation requiring bright, durable digit displays with excellent contrast and visibility.
BROADCOM HDSP5501 Seven Segment Display Specifications:
- Digit Size: 14.2 mm (0.56 inch)
- Color: High Efficiency Red
- Luminous Intensity: 3700mcd at 60mA
- Forward Voltage: 2.1V at 20mA
- Peak Wavelength: 635 nm
- Dominant Wavelength: 626 nm
- Viewing Angle: ±50°
- Leads: DIP on 2.54mm centers
- Operating Current: 20mA
- Maximum Power per Segment: 105 mW
- Peak Forward Current: 90 mA
- Operating Temperature Range: -40°C to +100°C
- Reverse Voltage: 3.0V
- Package Type: Through-hole, industry standard
Buy the Avago HDSP-5501 – Reliable Red Seven Segment Display for Industrial Applications
Purchase the Avago HDSP-5501 seven-segment LED display online today and ensure your electronic projects benefit from bright, durable, and reliable digit visualization. Featuring industry-standard DIP leads, 14.2mm digits, high luminous intensity of 3700mcd at 60mA, and a peak wavelength of 635nm, this display offers excellent visibility in various lighting conditions. Ideal for industrial automation, instrumentation, portable devices, and consumer electronics, it provides easy integration, consistent performance, and superior contrast with evenly lit segments and mitered corners. Order now to elevate your display solutions with top-quality LED digit displays.
Order your Avago HDSP-5501 seven-segment display today and enhance your industrial and electronic projects with dependable, high-visibility digit displays.
Frequently Asked Questions
Where can I buy BROADCOM HDSP5501?
You can click on the BUY or RFQ button to purchase HDSP5501 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP5501?
You can download the HDSP5501 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP5501?
BROADCOM
