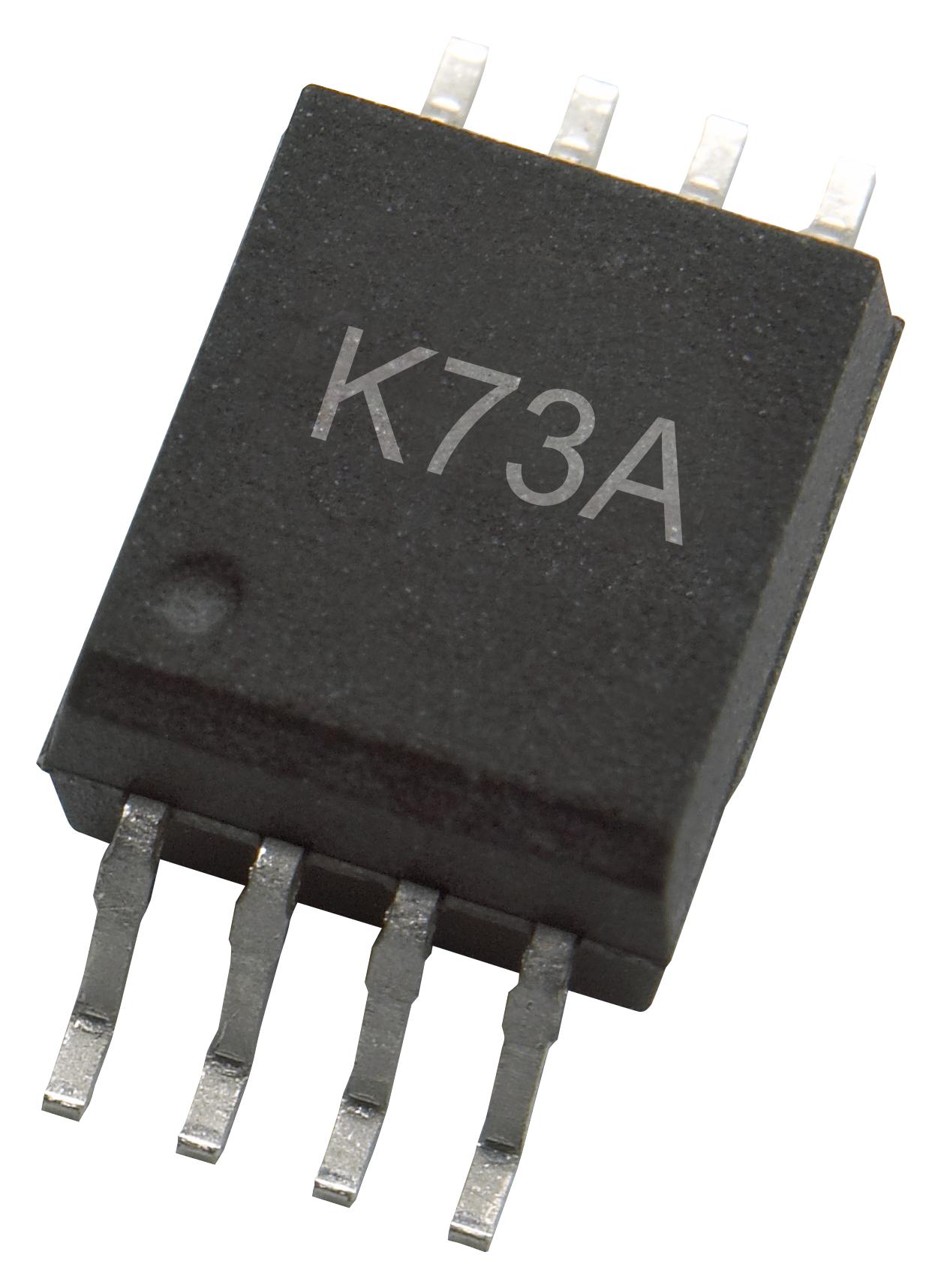

BROADCOM ACPLK73A560E Optocoupler
These high-gain, surface-mount optocouplers provide high current transfer ratios and low input current requirements for low-power industrial and control applications. Suitable for LVTTL and LVCMOS logic levels, they feature guaranteed performance across temperatures from -40°C to +105°C, with insulation ratings up to 5000 V. The ACPL-K73A560E allows efficient ground isolation, line status indication, and low power system integration. Packaged in a stretched SOIC-8 footprint, these optocouplers are recognized under UL 1577, CSA, and IEC 60747-5-5 safety standards, ensuring reliable operation in demanding environments.
BROADCOM ACPLK73A560E Optocoupler Specifications:
- Package: Stretched SOIC-8
- Maximum Insulation Voltage: 5000 Vpeak
- Input Reverse Voltage: 5 V
- Input Current: 0.04 mA (minimum), 12 mA (max recommended)
- Output Current: Up to 60 mA
- Current Transfer Ratio: 800% min to 25,000% max at I_F=0.04 mA
- Propagation Delay: 42 to 500 us depending on conditions
- Operating Temperature: -40°C to +105°C
- Isolation Resistance: >10^9 Ω at Vio=500V
- Insulation and SafetyApproval: UL 1577, CSA, IEC 60747-5-5
- Storage Temperature: -55°C to +125°C
- Lead Soldering Temperature: 260°C for 10s
Buy the Broadcom ACPL-K73A560E – Reliable Isolator for Industrial Applications
Buy the Broadcom ACPL-K73A560E optocoupler online today and ensure your industrial or control systems benefit from high current transfer ratio, low input current, and robust safety features. This engineer-approved component offers reliable isolation, wide temperature operation, and UL/IEC safety approval in a compact surface-mount package, making it ideal for low-power applications, ground isolation, and line status indication. Purchase now for fast delivery and seamless integration into your latest designs.
Order your Broadcom series ACPL-K73A560E today and give your projects the dependable ground isolation and low-power performance they deserve.
Frequently Asked Questions
Where can I buy BROADCOM ACPLK73A560E?
You can click on the BUY or RFQ button to purchase ACPLK73A560E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLK73A560E?
You can download the ACPLK73A560E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLK73A560E?
BROADCOM
