BROADCOM AFBRS50MV68B Time-of-Flight Distance Sensor
The Broadcom AFBR-SSOMV68B is a compact Time-of-Flight sensor module designed for high-speed distance and motion measurement over medium ranges up to 10 meters. It features an integrated 680-nm red laser, a 32-pixel receiver array, and ambient light suppression capabilities, making it suitable for outdoor environments under sunlight. The module supports frame rates up to 3 kHz, with an unambiguous maximum range of 100 meters in dual-frequency mode at 100 Hz. Its small size, low power consumption, and SPI interface enable seamless integration into various automation, robotics, HMI, and inventory applications.
BROADCOM AFBRS50MV68B Time-of-Flight Distance Sensor Specifications:
- Single voltage supply of 5V
- Typical current consumption of 33 mA
- Integrated 680-nm red laser source with typical optical peak power of 20 mW
- Receiver with 32 pixels, each with a field of view of 1.55° x 1.55°
- Transmitter beam width of 1° x 1°, distance up to 10m and beyond
- Operation temperature: -20°C to 50°C
- SPI interface up to 25 MHz, clock polarity CPOL=1, phase CPHA=1
- Module size without pins: 12.4 mm x 7.6 mm x 7.9 mm
- Features include high measurement rates up to 3 kHz, ambient light operation up to 100 kLux, laser class 1 eye-safe, accuracy below +1%

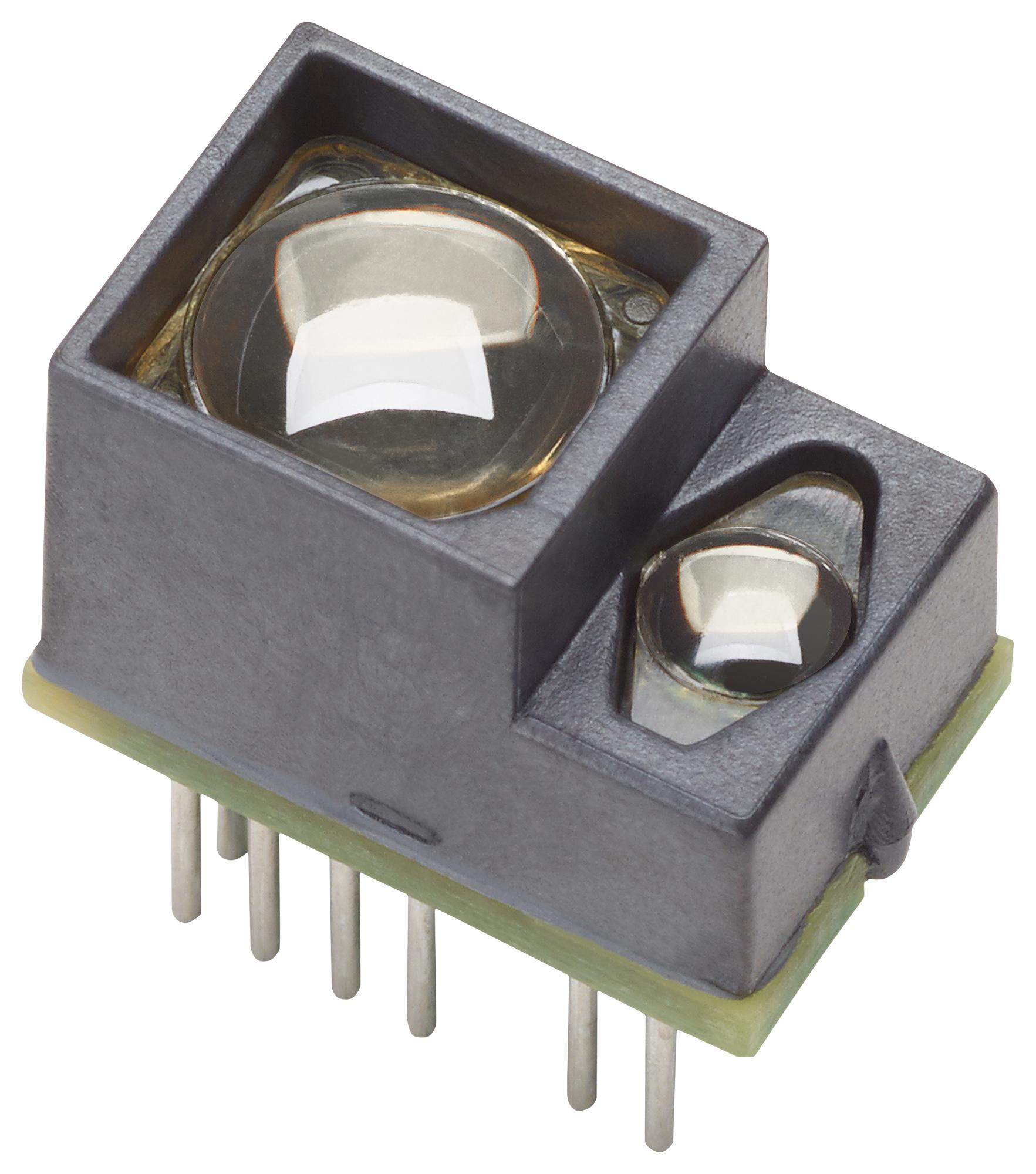

Buy the Broadcom Series AFBR-SSOMV68B Distance Sensor Module: AFBRS50MV68B
Order the Broadcom AFBR-SSOMV68B online today to benefit from its fast measurement speeds up to 3 kHz, medium-range detection up to 10 meters, and low power consumption. Ideal for robotics, automation, human-machine interfaces, and inventory monitoring, this compact module features an integrated laser source, ambient light suppression for outdoor use, and a digital SPI interface supporting up to 25 MHz. Lightweight and precise, it ensures seamless integration into your system for accurate distance and motion detection with high reliability. Experience the performance of a proven optical measurement solution designed for demanding applications.
Get Broadcom AFBR-SSOMV68B today—built for high-speed distance measurement and reliable operation in automation and robotics.
Frequently Asked Questions
Where can I buy BROADCOM AFBRS50MV68B?
You can click on the BUY or RFQ button to purchase AFBRS50MV68B from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part AFBRS50MV68B?
You can download the AFBRS50MV68B datasheet or visit the BROADCOM website for support.
Who is the manufacturer of AFBRS50MV68B?
BROADCOM
