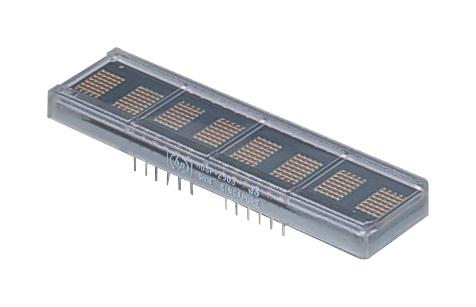

BROADCOM HDSP2502 Alphanumeric Display Module
This high-demand display module features high brightness, adjustable brightness levels, and is designed for easy microprocessor interface. It supports ASCII decoding, custom symbols, and multi-level dimming. Suitable for industrial instrumentation, medical equipment, and portable data entry devices, it offers reliable performance with low power consumption. The device is housed in a compact 28-pin DIP package, capable of operating over a temperature range of -45°C to +85°C, making it ideal for various demanding environments and applications requiring clear alphanumeric output.
BROADCOM HDSP2502 Alphanumeric Display Module Specifications:
- Package: 28-pin DIP
- Pin Function: RST, GND, Vpp, data lines, control signals
- Display Type: 8-digit 5 x 7 dot matrix
- Character Set: 128 ASCII characters, 16 programmable symbols
- Brightess Adjustment: 7 levels, multi-level dimming
- Operating Voltage: 4.5V to 5.5V
- Temperature Range: -45°C to +85°C
- Power Consumption: Max 255 mA at full brightness
- Interface: Microprocessor compatible bidirectional 8-bit data bus
- Dimensions: Standard 15.24 mm (0.6 inch) pitch, compatible with standard DIP sockets
- Durability: Wave solderable, robust sealing for harsh environments
- Supported Applications: Industrial instrumentation, medical devices, portable data entry
Buy the Buy Avago Technologies HDSP2502 Part Number HDSP2502 Online
Order the Avago Technologies HDSP2502 online today to enhance your industrial, medical, or portable data entry devices with a high-brightness, reliable, and easily interfaced alphanumeric display. This module provides versatile ASCII decoding, programmable symbols, and multi-level dimming, ensuring excellent readability in various environments. Its robust 28-pin DIP package simplifies integration into your application. Take advantage of fast delivery and seamless online purchasing to upgrade your equipment with a proven display solution that combines clarity, flexibility, and durability for demanding industrial and medical use cases.
Buy Avago Technologies HDSP2502 now and experience unmatched reliability and performance in high-brightness alphanumeric displays.
Frequently Asked Questions
Where can I buy BROADCOM HDSP2502?
You can click on the BUY or RFQ button to purchase HDSP2502 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP2502?
You can download the HDSP2502 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP2502?
BROADCOM
