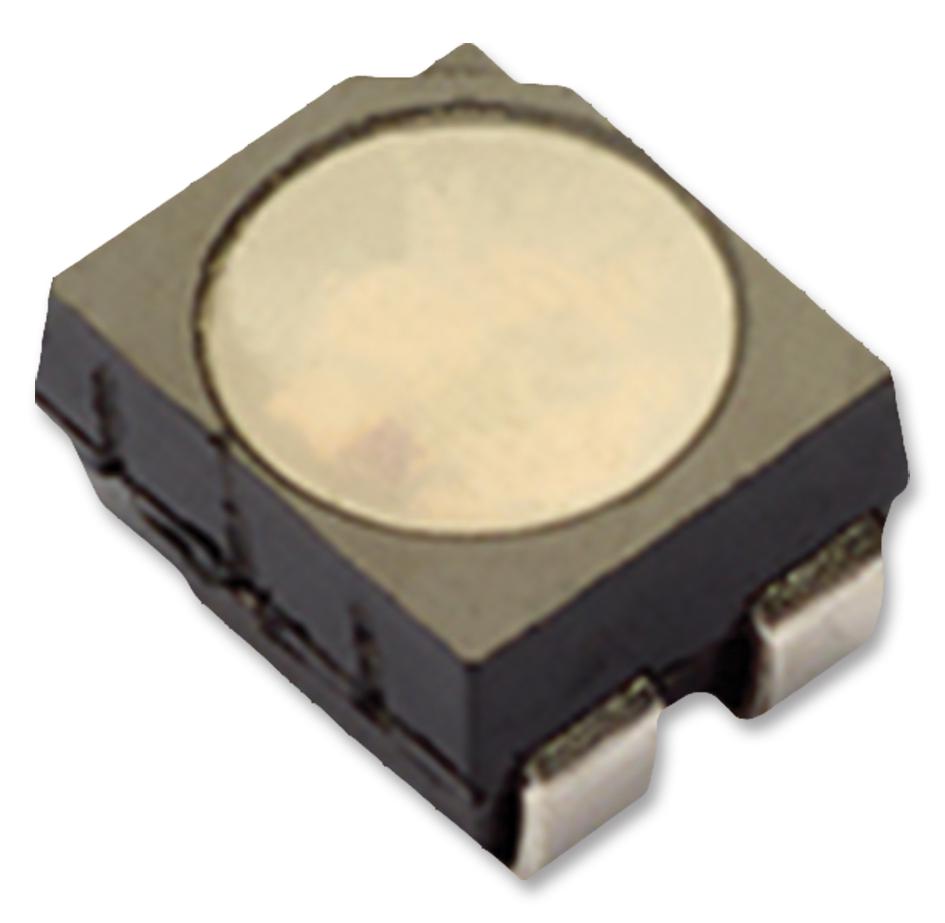

BROADCOM ASMBBTE10B332 High Brightness RGB LED
This high brightness PLCC-4 package LED features a black plastic housing with a white inner reflector, offering a wide 110° viewing angle ideal for interior electronic signs. Fully RoHS 6 compliant and lead-free, it uses AllnGaP and InGaN technologies for intense, vibrant colors with excellent contrast. Compatible with reflow soldering, the LED requires careful handling due to silicone encapsulation. Suitable for indoor full color displays, it provides reliable performance with maximum junction temperature of 110°C and comes in multiple color and intensity bins for binning consistency.
BROADCOM ASMBBTE10B332 High Brightness RGB LED Specifications:
- Package: PLCC-4 (Plastic Leaded Chip Carrier)
- Color: Red, Green, Blue
- Luminous Intensity: Min 285 mcd (Red), Min 1125 mcd (Green), Min 285 mcd (Blue)
- Peak Wavelength: 617 nm (Red), 525 nm (Green), 465 nm (Blue)
- Viewing Angle: 110° for all colors
- Forward Voltage: 18 V (Red), 28 V (Green/Blue)
- Maximum Junction Temperature: 110°C
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -40°C to 100°C
- Maximum Forward Current: 30 mA (Red), 25 mA (Green/Blue)
- Power Dissipation: 78 mW (Red), 90 mW (Green/Blue)
- Mechanical Dimensions: specific to package (including lead and body size)
- Encapsulation: Silicone
- Compliance: RoHS 6, JEDEC MSL 3
- Soldering: Reflow compatible with specified conditions
- Handling Precautions: ESD sensitive, silicone encapsulant delicate
- Certifications: RoHS, JEDEC MSL 3
Buy the Buy Avago High Brightness PLCC-4 RGB LED Part Number ASMBBTE10B332 Online
Purchase the high brightness RGB LED designed for indoor full color displays. Featuring a wide 110° viewing angle, silicone encapsulation, and RoHS compliance, this LED ensures vibrant, high contrast visuals. Compatible with reflow soldering processes for easy assembly, it offers reliable performance with max junction temperature of 110°C and multiple intensity bins for consistent colour quality. Ideal for electronics signs, advertising displays, and lighting applications where quality, durability, and brightness are critical for success.
Get Avago high brightness PLCC-4 RGB LED ASMBBTE10B332 today—designed for full color displays, reflow soldering, and long-lasting reliability.
Frequently Asked Questions
Where can I buy BROADCOM ASMBBTE10B332?
You can click on the BUY or RFQ button to purchase ASMBBTE10B332 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASMBBTE10B332?
You can download the ASMBBTE10B332 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASMBBTE10B332?
BROADCOM
