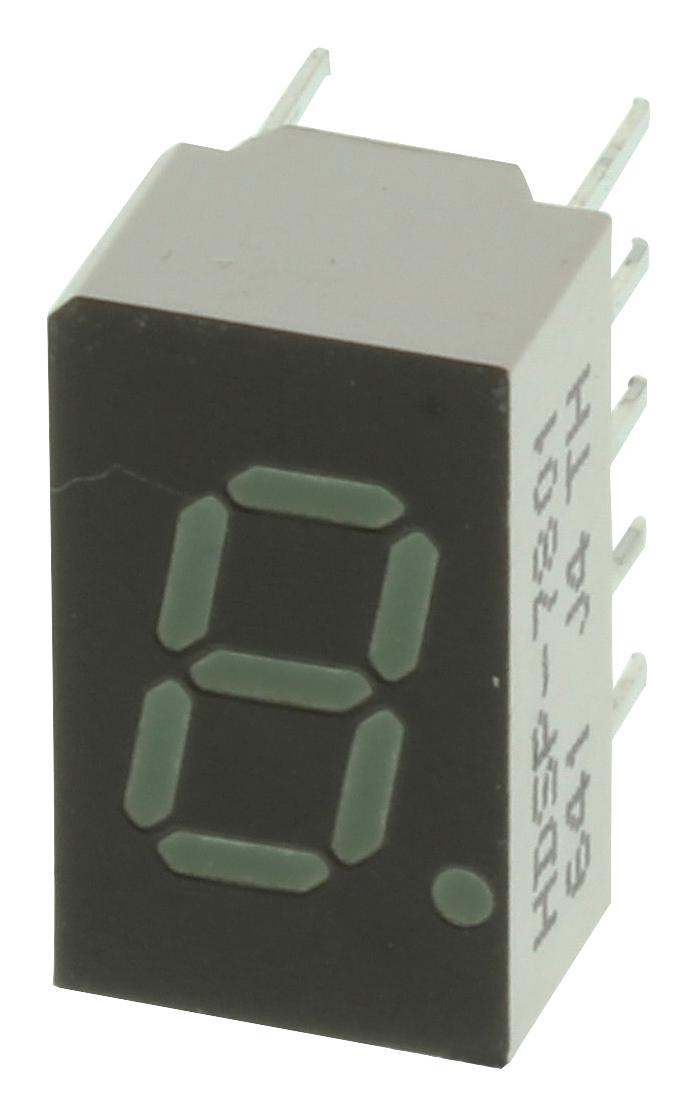

BROADCOM HDSPF103 Low Power Seven Segment Display
The HDSPF103 is a low current seven segment display designed for energy-efficient applications requiring minimal power consumption. Available in multiple character sizes including 7.6 mm, 10 mm, 14.2 mm, and 20 mm, these displays feature excellent low current operation with drive currents as low as 1 mA per segment. They can be configured as common anode or common cathode and support various colors like red, yellow, and green. Ideal for long digit string multiplexing, they provide bright, evenly lit segments with wide viewing angles of +50°. Suitable for industrial displays, instrumentation, and electronic devices, these displays are tested for reliable operation in diverse environments.
BROADCOM HDSPF103 Low Power Seven Segment Display Specifications:
- Available sizes: 7.6 mm, 10 mm, 14.2 mm, 20 mm
- Drive currents as low as 1 mA per segment
- Maximum power per segment: 37 to 64 mW
- Peak forward current: 45 mA
- DC forward current: 15 mA
- Operating temperature range: -20°C to +100°C
- Storage temperature: -55°C to +100°C
- Reverse voltage: 3.0 V
- Luminous intensity: up to 1700 mcd depending on size and color
- Peak wavelength: 635-645 nm depending on color
- Viewing angle: +50°
- Package options: common anode or cathode configurations
- Supported colors: Red, High Efficiency Red, Yellow, Green
- Designed for long digit multiplexing and even illumination
- Temperature coefficient of forward voltage: -2 mV/°C
- Wave solderable at 250°C for 3 seconds
- Tested for reliability and low power operation
Buy the Avago HDSPF103 – Reliable Low Power Seven Segment Displays for Industrial Applications
Enhance your electronic and industrial projects with the Avago HDSPF103 low power seven segment display. Available in multiple sizes and colors, these displays deliver bright, uniform illumination with excellent low current characteristics. Perfect for applications needing reliable, energy-efficient visual indication, they support various configurations including common anode and cathode. Easy to integrate, tested for durability, and suitable for long digit multiplexing, buy online today to improve the performance and visibility of your electronic devices with this high-quality, energy-saving display technology.
Buy Avago HDSPF103 now and experience unmatched reliability with energy-efficient seven segment displays suitable for long-term industrial and electronic device use.
Frequently Asked Questions
Where can I buy BROADCOM HDSPF103?
You can click on the BUY or RFQ button to purchase HDSPF103 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSPF103?
You can download the HDSPF103 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSPF103?
BROADCOM
