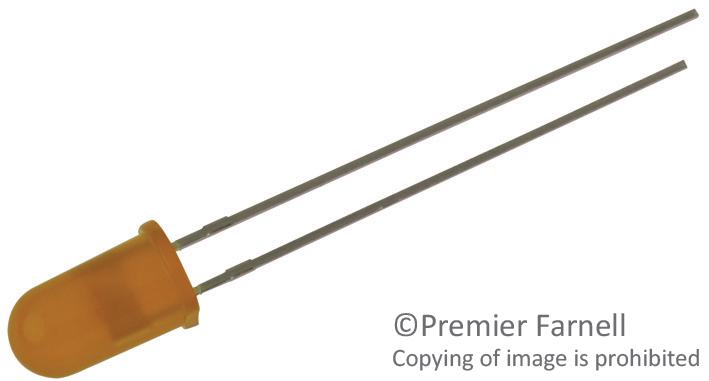

BROADCOM HLMP3401 Yellow Diffused LED
The HLMP-3401 is a yellow diffused LED lamp made from GaP material, ideal for general-purpose indicator applications. It features a tinted, diffused lens that offers superior light output and wide viewing angles, ensuring excellent visibility from multiple perspectives. This high-intensity LED provides broad viewing angles, reliable performance, and robust construction, making it suitable for various LED lighting and signaling applications. Its standard leads and rugged design make installation straightforward and durable, perfect for industrial, commercial, or consumer use, with consistent performance though lead times may fluctuate due to high market demand.
BROADCOM HLMP3401 Yellow Diffused LED Specifications:
- Material: GaP
- Color: Yellow
- Lens Type: Diffused
- Viewing Angle: Wide
- Lead Type: Standard leads
- Maximum Junction Temperature: 110°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Peak Wavelength: 583 nm
- Luminous Intensity: 6.5 - 61 mcd depending on bin
- Forward Voltage: 2.0 - 24 V
- Peak Forward Current: 90 mA
- Average Forward Current: 20 - 25 mA
- Power Dissipation: 85 - 135 mW
- Reverse Voltage: 5 V
- Transient Forward Current: 500 mA (10 μs pulse)
- Dimensions: Diameter approximately 5 mm, length varies with lead configuration, typical lead length 6.1 mm
- Package: T-1 3/4 (5 mm), available in bulk, tape & reel, ammo pack, and other packaging options
Buy the Avago HLMP-3401 Reliable Yellow Diffused LED for Industrial Applications
Order the Avago HLMP-3401 yellow diffused LED online today to enhance your indicator and lighting systems. With superior optical design, high intensity, and wide viewing angles, this reliable GaP-based LED ensures optimal visibility and durability. Perfect for industrial and commercial applications, it features rugged construction, standard leads, and multiple packaging options. Enjoy quick, secure online purchasing with fast delivery. Invest in proven quality and performance—purchase HLMP-3401 today to meet demanding signaling and illumination needs efficiently and effectively.
Buy Avago HLMP-3401 now and experience unmatched reliability and performance in indicator and lighting projects.
