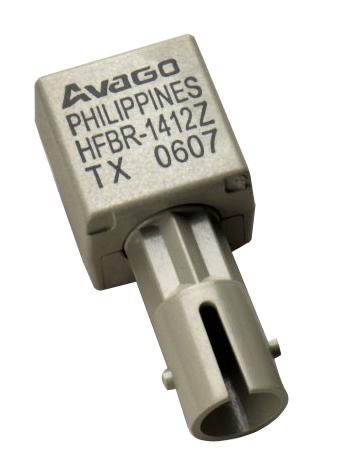

BROADCOM HFBR1412TMZ Optical Transmitter
The HFBR-1412TMZ is a high-performance, miniature 820 nm optical transmitter with a metal ST port, designed for fiber optic links up to 1.5 km. It features an AlGaAs emitter with high reliability due to 100% burn-in, an efficient optical port for coupling, and is wave solderable and auto-insertable, eliminating the need for extra mounting hardware. Operating reliably from -40°C to 85°C, this transmitter suits applications in computer peripherals, fiber optic networks, medical devices, and industrial systems. Its compact design allows easy integration into high-volume production environments, ensuring robust and consistent optical performance for demanding applications.
BROADCOM HFBR1412TMZ Optical Transmitter Specifications:
- Wavelength: 820 nm
- Operating Temperature Range: -40°C to 85°C
- Optical Port: Metal ST-threaded
- Fiber Compatibility: 50/125 μm, 62.5/125 μm, 100/140 μm, 200 μm PCS fiber
- Link Distance: Up to 1.5 km
- Emitter Type: AlGaAs
- Reliability: 100% burn-in for high performance
- Electrical Characteristics: Drive current typically 60 mA, Forward voltage around 1.7 V at 60 mA
- Physical Dimensions: Compact form factor suitable for wave soldering and auto-insertion
- Mounting: Wave solderable, auto-insertable, no additional hardware required
Buy the Buy Avago HFBR-1412TMZ Optical Transmitter Part Number HFBR-1412TMZ Online
Purchase the Avago HFBR-1412TMZ fiber optic transmitter online today and enjoy reliable, high-performance optical transmission for distances up to 1.5 km. Designed with a metal ST port and optimized for various fiber sizes, it offers excellent coupling efficiency and operates seamlessly from -40°C to 85°C. Its compact, wave solderable design makes it ideal for high-volume industrial and computer systems. Trust our easy online ordering to deliver this high-quality transmitter directly to your project, ensuring quick deployment and consistent performance in demanding environments.
Order your Avago HFBR-1412TMZ high-reliability fiber optic transmitter today and ensure robust, long-distance optical communication for industrial and computer network applications.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1412TMZ?
You can click on the BUY or RFQ button to purchase HFBR1412TMZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1412TMZ?
You can download the HFBR1412TMZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1412TMZ?
BROADCOM
