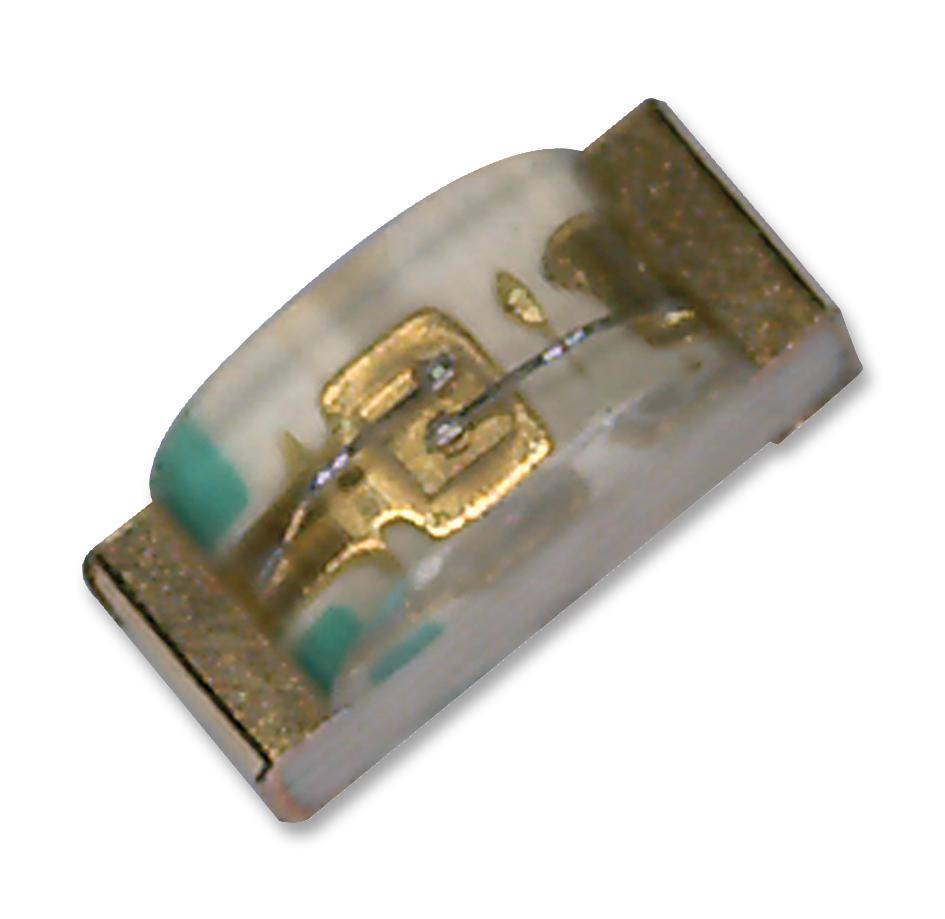

BROADCOM HSMQC120 Chip LED
These compact chip-type LEDs utilize high-efficiency InGaN technology to provide bright, consistent blue and green illumination ideal for LCD backlighting, push buttons, and indicators. Available in top, side, and reverse mount packages, these LEDs feature diffused optics and are compatible with IR soldering, ensuring easy assembly in industrial environments. Designed for durability with a maximum junction temperature of 95°C and operating range from -40°C to +85°C, they are suitable for various electronic display, signaling, and illumination applications requiring small form factor and reliable performance.
BROADCOM HSMQC120 Chip LED Specifications:
- Package Dimensions: HSMQ-C110 3.2 x 1.5 x 1.0 mm, HSMQ-C120 1.6 x 1.0 x 0.6 mm, HSMQ-C150 3.2 x 1.6 x 1.1 mm, HSMQ-C170 2.0 x 1.25 x 0.8 mm, HSMQ-C177 2.0 x 1.25 x 0.4 mm, HSMQ-C190 1.6 x 0.8 x 0.8 mm, HSMQ-C191 1.6 x 0.8 x 0.6 mm, HSMQ-C197 1.6 x 0.8 x 0.4 mm, HSMQ-C265 3.7 x 1.45 x 1.1 mm.
- Optical Characteristics: Green 520 nm peak wavelength, typical luminous intensity 145-150 mcd, viewing angle around 130-155°, efficacy approximately 500 Im/W. Blue 469-473 nm, intensity 45-60 mcd, angle 130-155°, efficacy approximately 88 Im/W.
- Electrical Characteristics: Forward voltage 3.4-3.9 V at 20mA, reverse voltage 5V, junction temperature max 95°C, operating temperature -40°C to +85°C.
- Package Compatibility: Tape and reel packaging with sealed moisture barrier, compatible with IR soldering, suitable for pick-and-place assembly, with detailed soldering profiles provided.
Buy the Broadcom HSMQC120 – Reliable Chip LED for Industrial Displays
Order Avago chip LEDs online today—designed with high-efficiency InGaN technology, these small LEDs are perfect for LCD backlighting, indicators, and microdisplays. With diffused optics and compatibility with IR soldering, they ensure ease of assembly and durable operation in industrial environments. Each package is meticulously binned by color and intensity for consistent quality. Whether for backlighting, symbol indicators, or message panels, these LEDs deliver bright, reliable illumination with a compact footprint, ensuring seamless integration into your electronic projects.
Get Avago high-performance chip LEDs today—perfect for industrial displays and indicators, built for reliable operation and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HSMQC120?
You can click on the BUY or RFQ button to purchase HSMQC120 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMQC120?
You can download the HSMQC120 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMQC120?
BROADCOM
