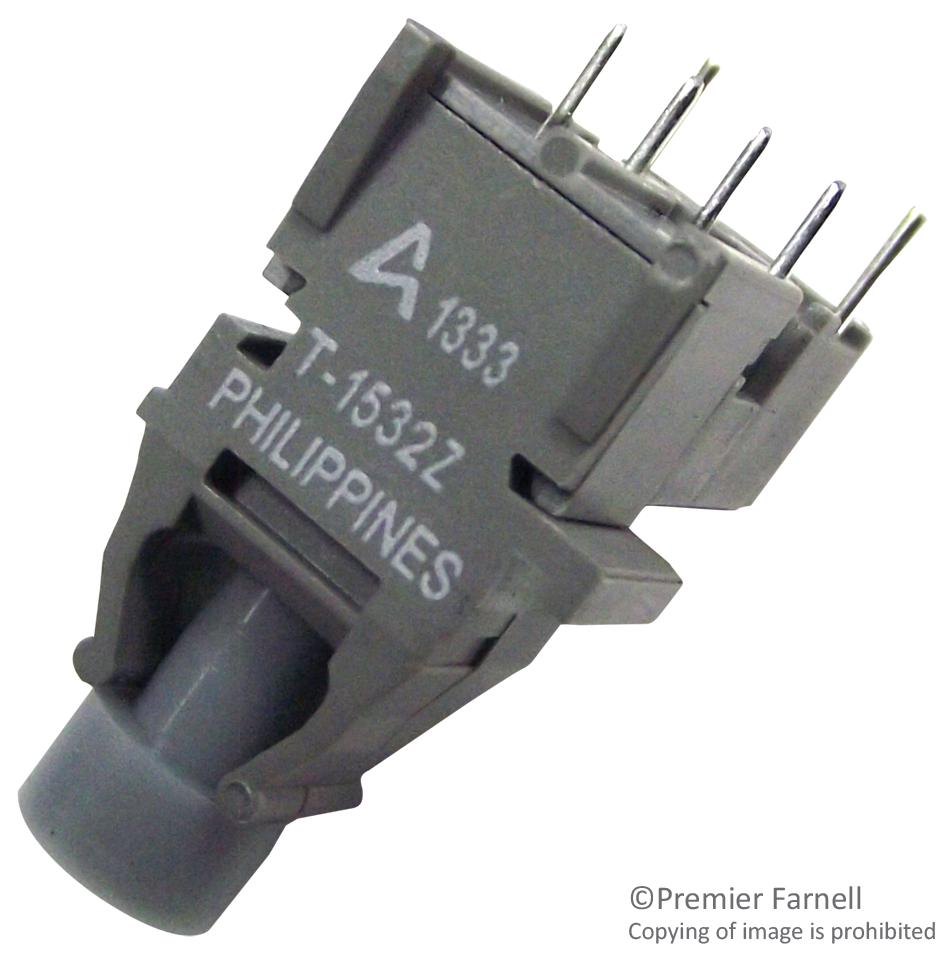

BROADCOM HFBR1531Z fiber optic transmitter
The HFBR-1531Z is a high-performance, 5 Mbaud fiber optic transmitter ideal for industrial communication, networking, and automotive systems. Featuring a 660 nm LED and optimized for easy use with 1mm plastic optical fiber, it provides voltage isolation and EMI/RFI immunity while ensuring data security. This flame-retardant device operates from 0 to 70°C, has a low peak supply current of just 6mA, and includes an interlocking feature for mechanical stability. Compatible with TTL signals, it simplifies optical system design, making it suitable for data transmission and noise immune control applications in industrial and automotive fields.
BROADCOM HFBR1531Z fiber optic transmitter Specifications:
- Wavelength: 660 nm
- Data Rate: 5 MBaud
- Maximum Operating Temperature: 70°C
- Supply Voltage: 6 mA peak current, compatible with TTL
- Connector Compatibility: Optimized for 1 mm diameter plastic optical fiber
- Material: Flame-retardant, UL 94 V-0
- Optical Output Power: -45 dBm at 60 mA drive current
- Rise Time: 80 ns
- Fall Time: 40 ns
- Operating Temperature Range: 0 to 70°C
- Dimensions: Standard fiber optic transmitter package
- Additional features: Interlocking mechanism, high noise immunity, RoHS-compliant
- Applications include data communication, automotive networks, industrial control, and EMI/RFI sensitive environments.
Buy the Avago HFBR1531Z – Reliable Fiber Optic Transmitter for Industrial Applications
Upgrade your data transmission system by purchasing the HFBR1531Z fiber optic transmitter online today. Featuring a 660 nm LED, 5 MBaud data rate, minimal power consumption, and proven EMI/RFI immunity, this flame-retardant device ensures secure and noise-immune communication in industrial, automotive, and networking environments. With easy connectivity for 1mm plastic optical fiber, low rise and fall times, and compatibility with TTL circuitry, it simplifies system design. Enhance your network's performance and reliability by ordering now from authorized online distributors.
Buy Avago HFBR1531Z now and experience unmatched reliability and high-speed communication performance in industrial and automotive systems.
Frequently Asked Questions
Where can I buy BROADCOM HFBR1531Z?
You can click on the BUY or RFQ button to purchase HFBR1531Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR1531Z?
You can download the HFBR1531Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR1531Z?
BROADCOM
