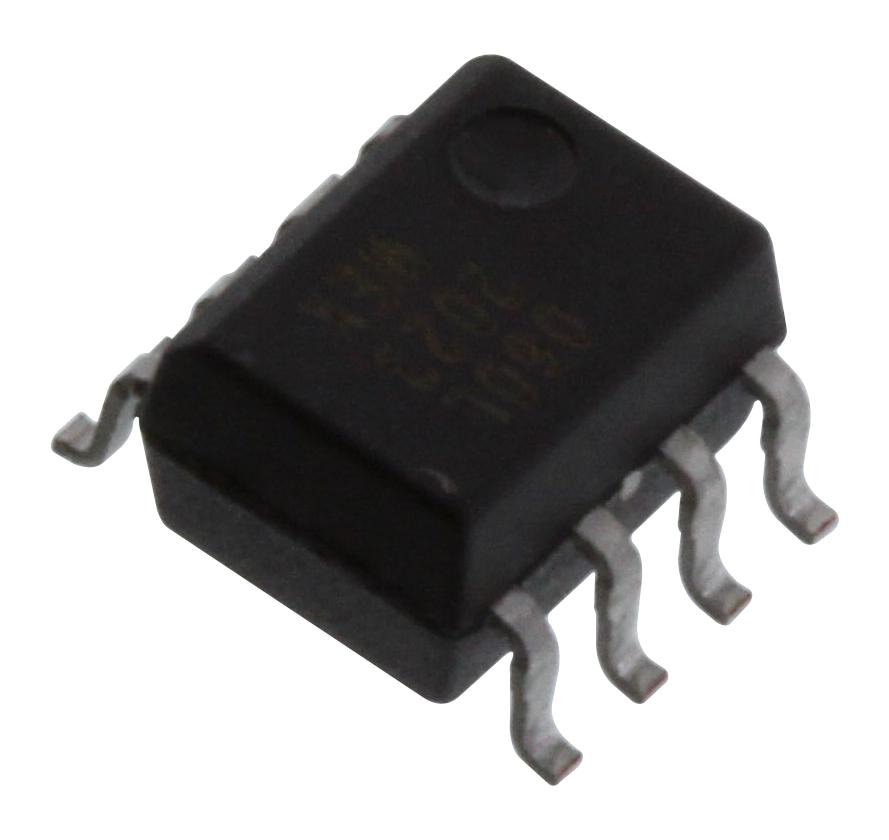

BROADCOM HCPL060L High-Speed LVTTL Optocoupler
This high-speed LVTTL-compatible 3.3V optocoupler combines a GaAsP LED with a high-gain photodetector, ideal for high-speed isolated line receivers, microprocessor interfaces, and digital system isolation. It features dual supply voltages of 3.3V and 5V, low power consumption, and guarantees minimum 15kV/µs common-mode rejection at 1000V. Supporting data rates of approximately 15MBd and compatible with LVTTL and LVCMOS logic levels, it operates reliably from -40°C to +85°C, certified by UL, CSA, and IEC safety standards, making it suitable for harsh industrial environments and noise-prone applications.
BROADCOM HCPL060L High-Speed LVTTL Optocoupler Specifications:
- Operating Voltage: 3.3V/5V dual supply
- Maximum Data Rate: 15MBd
- Common Mode Transient Immunity: 15kV/µs at 1000V
- Temperature Range: -40°C to +85°C
- Input Current: 5mA (typical)
- Isolation Voltage: 3750 Vrms (UL recognized)
- Propagation Delay Time: 20-50 ns depending on conditions
- Pulse Width Distortion: 35 ns
- Package Options: 8-pin DIP, SOIC-8, Gull Wing Surface Mount
- Safety Certifications: UL, CSA, IEC/EN/DIN EN 60747-5-5
- Minimum AC/DC performance guaranteed over temperature range
- Low Power Consumption
- Compatible with LVTTL/LVCMOS Logic Levels
Buy the Avago HCPL060L – Reliable High-Speed LVTTL Optocoupler for Industrial Applications
Enhance your electronic systems with the HCPL060L, a high-speed LVTTL-compatible 3.3V optocoupler designed for digital isolation in industrial environments. Featuring a GaAsP LED and a high-gain detector, it offers approximately 15MBd data rate, 15kV/µs common-mode rejection, and reliable operation from -40°C to +85°C. Its compact 8-pin package supports UL, CSA, and IEC safety standards, ensuring safe and efficient performance in noisy or high-voltage conditions. Buy online today for trusted quality and seamless integration into your projects.
Order your Avago HCPL060L high-speed LVTTL optocoupler today and enhance your industrial projects with dependable digital isolation and noise immunity.
