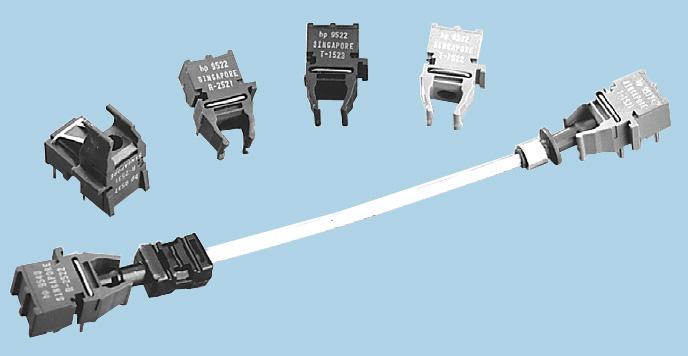

BROADCOM HFBR2524Z Fibre Optic Receiver
The HFBR-2524Z is a 1 Mbaud standard Versatile Link fibre optic receiver designed for reliable data transmission with enhanced electrical isolation, immunity to EMI and RFI, and improved data security. It features an internal shield for noise immunity, optimized for use with 1mm plastic optical fibers. Supporting all connector interface losses, it simplifies optical calculations. Operating at 600nm wavelength, it is compatible with TTL circuitry. Key features include a peak supply current of 6mA, high noise immunity, flame-retardant construction, and a temperature range of 0 to 70°C, suitable for communications, networking, and automotive applications.
BROADCOM HFBR2524Z Fibre Optic Receiver Specifications:
- Wavelength: 600 nm
- Supply Voltage: 4.75 V to 5.25 V
- Supply Current: 6 mA peak
- Maximum Storage Temperature: -40°C to +85°C
- Operating Temperature Range: 0°C to 70°C
- Input Optical Power Level: -39 to -13.7 dBm
- Output Voltage: High ≥ 5.5 V, Low ≤ 0.4 V
- Output Current: High ≥ 250 μA, Low ≤ 8 mA
- Connector Interface Losses Supported
- Flame-retardant housing
- Numerical Aperture: 0.5
- Dimensions compatible with standard optical fiber connections
- Internal noise immunity shield
Buy the Avago Series Versatile Link Fibre Receiver: HFBR2524Z
Purchase the Avago HFBR2524Z fibre optic receiver online today to ensure reliable data transmission with enhanced noise immunity, TTL compatibility, and flame-retardant safety. Designed for high-performance communication, automotive, and industrial applications, this device delivers accurate signals over the required temperature range. Fast, secure ordering guarantees you receive a top-quality, precision-engineered component that simplifies optical calculations and provides robust electrical insulation. Enhance your network systems with confidence and leverage durable, market-proven technology for long-term performance.
Get Avago HFBR2524Z today—built for precision and long-lasting durability in fiber optic communications and industrial networking.
