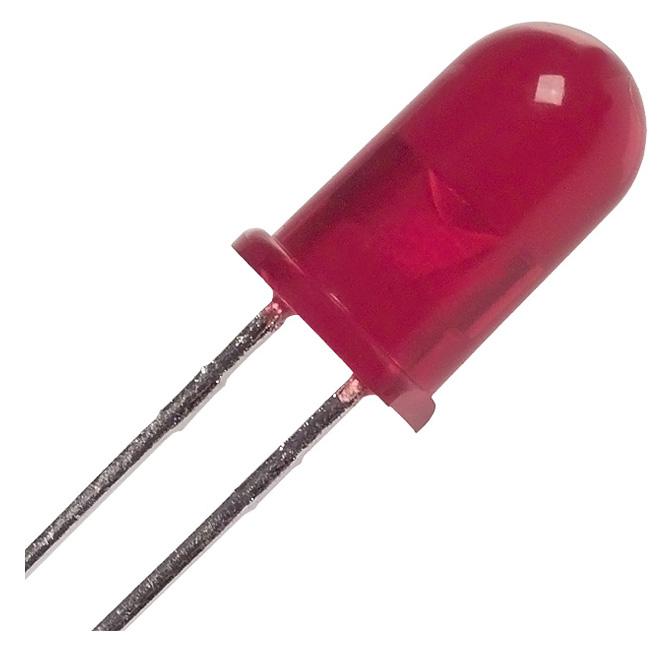

BROADCOM HLMPD101 High-Intensity Red LED
The HLMP-D101 is a high-intensity, double heterojunction LED lamp made from AlGaAs technology. It provides outstanding light output efficiency over diverse drive currents, emitting a deep red hue at 637 nanometers. Designed for flexible operation, it supports both DC and pulse driving. This LED features exceptional brightness, broad viewing angles, and low forward voltage, making it ideal for LED lighting, portable equipment, and display applications. Its compatibility spans CMOS, MOS, and TTL logic levels, ensuring easy integration into various electronic systems. Extended lead times may apply, and it is not eligible for discounts.
BROADCOM HLMPD101 High-Intensity Red LED Specifications:
- Wavelength: 637 nm
- Color: Deep red
- Drive Type: DC or pulse driven
- Luminosity: Exceptional brightness, 70 mcd at 20 mA
- Viewing Angle: Wide
- Forward Voltage: 18-22 V
- Peak Forward Current: 300 mA
- Average Forward Current: 20 mA
- Power Dissipation: 87 mW
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Lead Placement: Preformed or cut prior to soldering, recommended to cut after soldering
- Soldering Profile: Max temperature 250°C, dwell time up to 3 sec
- Package Types: T-13/4 and T-1, Tape & Reel or Bulk Packaging options
- Reliability: Suitable for ambient lighting, message panels, and portable devices
Buy the Avago Series HLMP D101 Red LED: HLMPD101
Purchase the Avago Series HLMPD101 high-intensity red LED online today to benefit from its outstanding brightness and low voltage operation. This deep red LED, emitting at 637 nanometers, is perfect for lighting, displays, and portable applications. Its wide viewing angle and compatibility with CMOS, MOS, and TTL logic make it versatile and easy to incorporate into various electronic designs. Ensure optimal performance by following recommended soldering profiles, and enjoy fast delivery to get your projects underway with confidence.
Order your Avago Series HLMPD101 high-intensity red LED today and enhance your lighting projects with reliable, bright illumination solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMPD101?
You can click on the BUY or RFQ button to purchase HLMPD101 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPD101?
You can download the HLMPD101 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPD101?
BROADCOM
