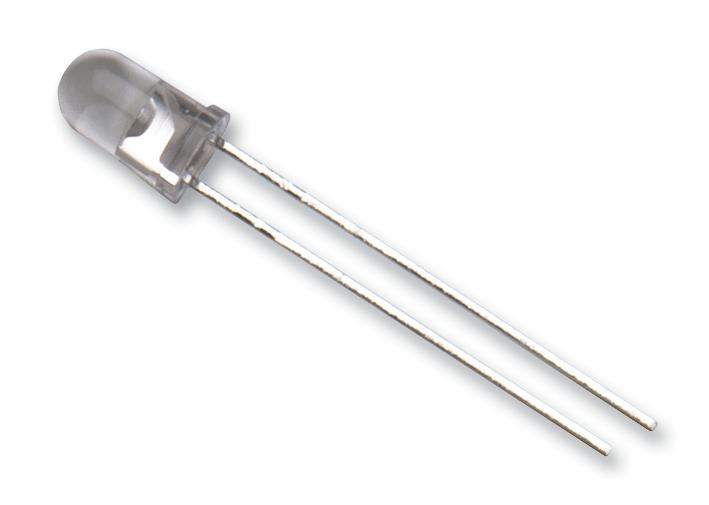

BROADCOM HLMPCB2AVW0DD High Power LED
These high intensity blue and green LEDs feature a 5mm size with well-defined spatial radiation patterns, high luminous output, and advanced UV-inhibited epoxy for outdoor use. Available in 470nm blue and 525nm green, they are suitable for traffic signs, outdoor advertising, and variable message signs. With viewing angles of 15°, 23°, and 30°, they provide moisture resistance and operate reliably in harsh environments. These LEDs comply with RoHS standards, making them ideal for durable, eco-friendly electronic signaling applications.
BROADCOM HLMPCB2AVW0DD High Power LED Specifications:
- Color: Blue 470nm, Green 525nm
- Package: T-134, 5mm diameter
- Viewing Angle: 15°, 23°, 30°
- Operating Voltage: 2.8V to 3.8V
- Forward Current: 30 mA (max)
- Peak Forward Current: 100 mA
- Power Dissipation: 116 mW
- Junction Temperature: 110°C
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Luminous Intensity: 3,200 to 59,000 mcd depending on bin
- Sensitive to ESD, requires handling precautions
- Encapsulated in advanced optical epoxy with UV inhibitor for outdoor durability
- RoHS compliant, lead-free soldering recommended
Buy the Buy Avago HLMP-Cx1A-XYODD Part Number HLMP-Cx1A-XYODD Online
Get your Avago HLMP-Cx1A-XYODD LED lamps online now to improve outdoor signage and traffic signals. These durable, high luminous intensity LEDs feature UV-inhibited epoxy for long-term outdoor performance. They operate within -40°C to +85°C temperatures, ensuring dependable service in harsh weather. Perfect for variable message signs and traffic lighting, they offer multiple viewing angles and excellent moisture resistance. Purchase online today for fast delivery and quality assurance, making your outdoor signaling projects brighter, safer, and more reliable.
Order your Avago HLMP-Cx1A-XYODD high brightness blue LED today and enhance outdoor signage projects with reliable, weather-resistant illumination.
Frequently Asked Questions
Where can I buy BROADCOM HLMPCB2AVW0DD?
You can click on the BUY or RFQ button to purchase HLMPCB2AVW0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPCB2AVW0DD?
You can download the HLMPCB2AVW0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPCB2AVW0DD?
BROADCOM
