BROADCOM HLMPEG3HVX0DD High Brightness LED
These high-brightness allnGaP LEDs offer superior outdoor visibility, well-defined radiation patterns, and robust moisture resistance. Featuring a maximum junction temperature of 130°C, they operate efficiently in bright sunlight, making them ideal for traffic signals, pedestrian crossings, and outdoor advertising. Available in red and amber with multiple viewing angles, these LEDs are suitable for auto-insertion onto PCBs, ensuring reliable signal performance and long-term durability in harsh environments. Designed with advanced epoxy and RoHS compliance, they deliver consistent brightness and high-temperature resilience.
BROADCOM HLMPEG3HVX0DD High Brightness LED Specifications:
- Color: Red, Amber
- Wavelength: Red 626 nm, Amber 590 nm
- Viewing angle: 15°, 23°, 30°
- Max junction temperature: 130°C
- Operating temperature: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Forward Current: 50 mA (DC), Peak 100 mA
- Power Dissipation: 120 mW
- Soldering temperature: Max 260°C for 5 sec
- Lead type: Tin-plated mild steel leads
- Epoxy: High temperature, UV resistant, moisture resistant
- RoHS compliant and lead-free
- Case diameter: 5 mm standard round package
- Maximum epoxy meniscus: 1.21 mm
- Protective features: UV inhibitor, advanced optical epoxy
- Suitable for outdoor signal lighting and variable message signs
- Electrical parameters: Forward voltage 2.1V at 20 mA, Dominant wavelength 626/590 nm

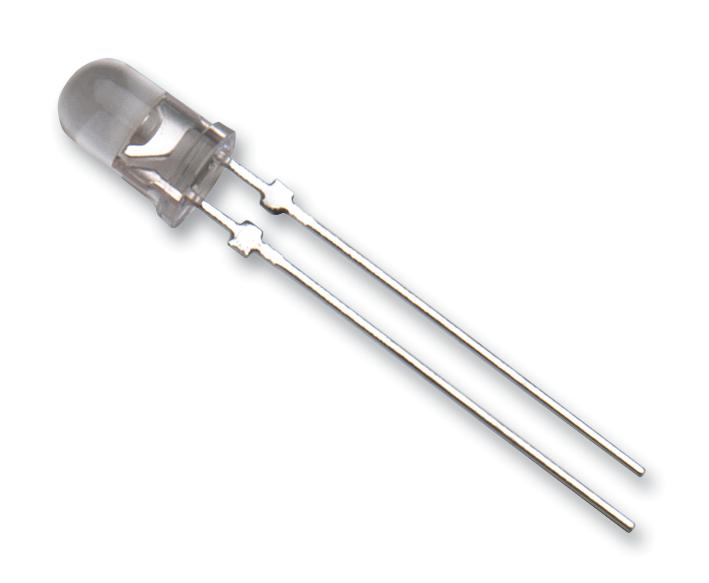

Buy the Buy Avago HLMP-EGxx Part Number HLMP-EG3HVX0DD Online
Experience the superior visibility and durability of Avago High Brightness LED HLMP-EG3HVX0DD. Designed for outdoor signage, traffic signals, and pedestrian crossings, this LED offers high luminous intensity, robust moisture resistance, and a maximum junction temperature of 130°C. Its precise radiation pattern, multiple viewing angles, and UV-resistant epoxy make it ideal for demanding outdoor environments. Trust in AVAGO LED technology for consistent performance, long-term reliability, and easy online purchasing, ensuring your outdoor lighting projects are bright, efficient, and dependable.
Get Avago HLMP-EG3HVX0DD today—built for high brightness and outdoor reliability in traffic and signage applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEG3HVX0DD?
You can click on the BUY or RFQ button to purchase HLMPEG3HVX0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEG3HVX0DD?
You can download the HLMPEG3HVX0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEG3HVX0DD?
BROADCOM
