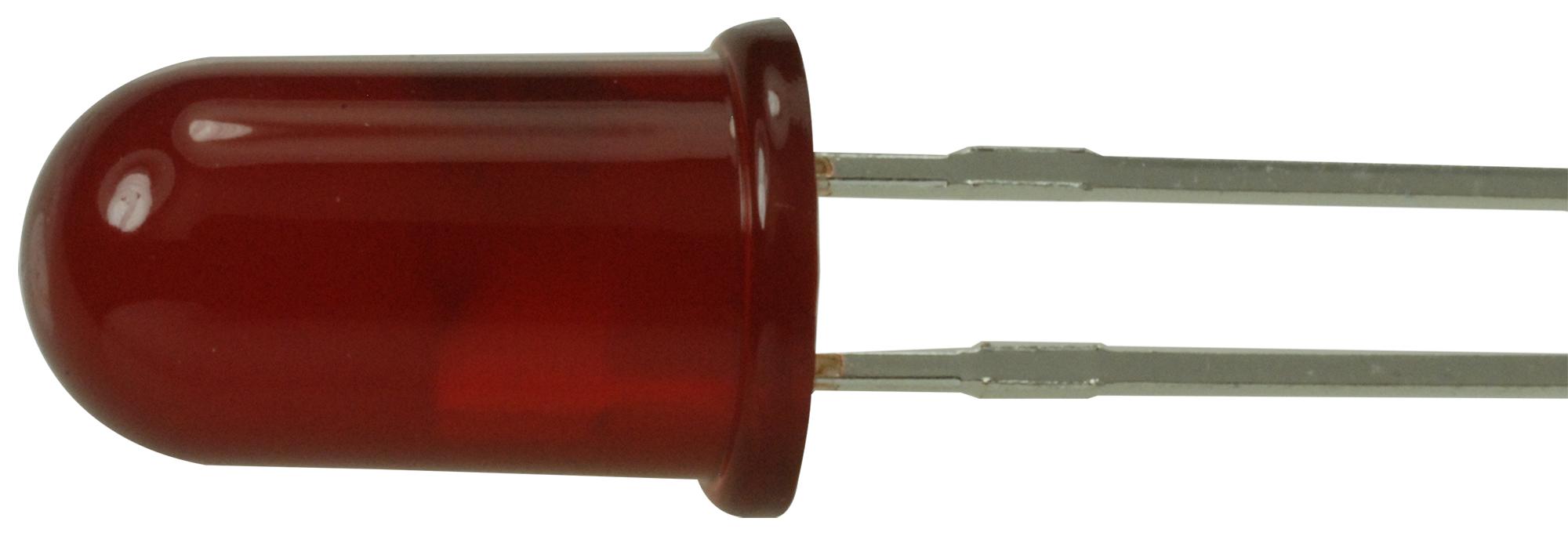

BROADCOM HLMPD150 Red LED Lamp
The HLMP-D150 is a red solid-state LED lamp utilizing double hetero-junction AlGaAs/GaAs technology, featuring high brightness at low currents and a deep red wavelength of 637 nm. It offers excellent efficiency, a wide viewing angle, and low forward voltage, making it suitable for high light output in low power consumption applications. Compatible with TTL logic, it's ideal for LED lighting, power management, and telecommunication indicators. This reliable LED ensures long-lasting performance, compact size, and versatile use in various electronic and networking systems. Delivery times may vary due to high demand, with standard pricing available.
BROADCOM HLMPD150 Red LED Lamp Specifications:
- Wavelength: 637 nm
- Color: Deep red
- Type: Double heterojunction AlGaAs/GaAs
- Forward Voltage: 16-18 V
- Peak Wavelength: 645 nm
- Luminous Intensity at 1 mA: 3.0 mcd (Typ.)
- Viewing Angle: 65°
- Maximum Peak Forward Current: 300 mA
- Average Forward Current: 20 mA
- Power Dissipation: 87 mW
- Reverse Voltage: 5 V
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: 110°C
- Spectral Line Halfwidth: 20 nm
- Capacitance: 30 pF
- LED Junction Temperature: 110°C
- Mechanical Package: T-13/4 (5 mm)
Buy the Buy Avago HLMP-D150 Red LED Lamp Part Number HLMPD150 Online
Purchase the Avago HLMP-D150 red LED lamp online today for applications requiring high-efficiency, low power consumption, and vibrant deep red color. Designed with advanced double heterojunction technology, this LED features high brightness at low current levels, broad viewing angles, and compatibility with TTL logic. Its compact size and reliable performance make it ideal for LED indicators, communication systems, and electronic lighting. Enjoy fast delivery, competitive pricing, and guaranteed quality when ordering this versatile and long-lasting LED lamp for your projects.
Get Avago HLMP-D150 red LED lamp today—built for high brightness, low power, and reliable performance in electronic lighting and signal applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMPD150?
You can click on the BUY or RFQ button to purchase HLMPD150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPD150?
You can download the HLMPD150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPD150?
BROADCOM
