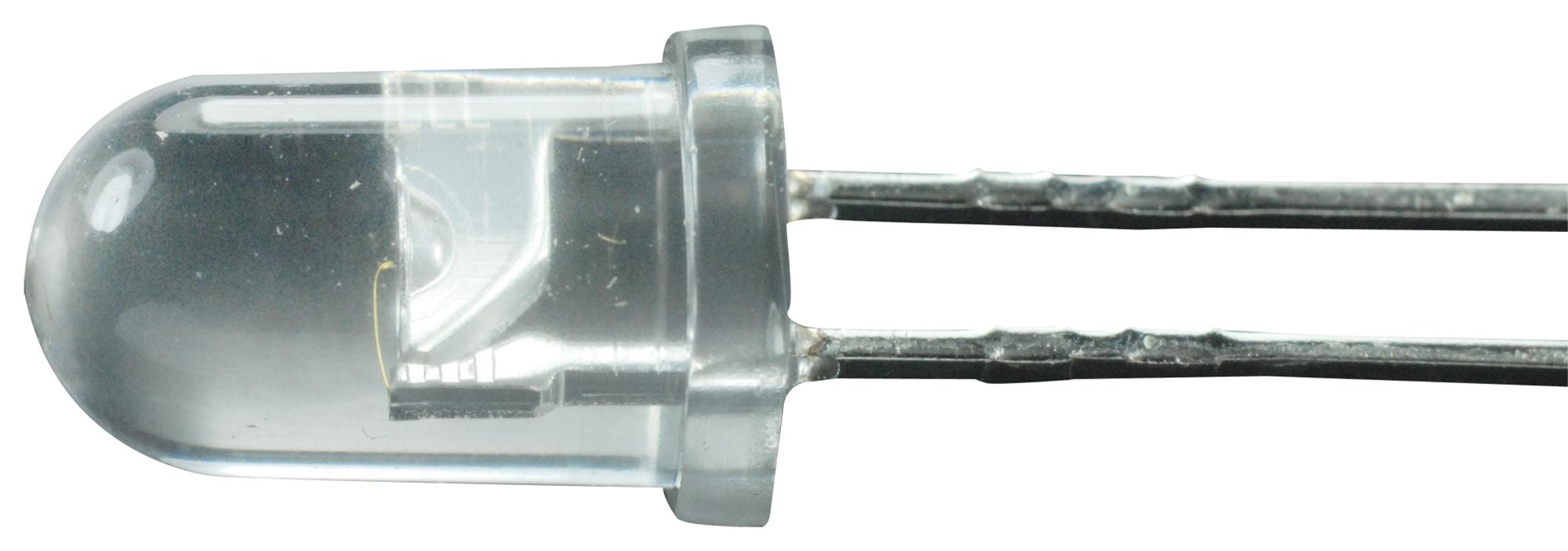

BROADCOM HLMPEG2AXY0DD High-brightness LED lamp
The HLMP-EG2A-XY0DD is a high-brightness red LED lamp made from AlInGaP (Aluminium Indium Gallium Phosphide). It delivers exceptional luminous output, ensuring excellent readability even in direct sunlight, and is highly reliable for long-term use. The LED features advanced optical design with second-generation optics that produce well-defined spatial radiation patterns at specific viewing angles. Constructed with an optical-grade epoxy containing UV inhibitors, it offers outstanding resistance to high temperatures, moisture, and prolonged sunlight exposure, making it ideal for outdoor signaling, signage, automotive applications, and LED lighting. The device can operate reliably at temperatures from -40°C to 100°C, with a maximum junction temperature of +130°C, suitable for high-temperature environments.
BROADCOM HLMPEG2AXY0DD High-brightness LED lamp Specifications:
- Wavelength: 626nm (Red)
- Luminous Output: 12000 to 21000 mcd at 20mA
- Viewing Angle: 15°, 23°, 30° options
- Maximum Junction Temperature: +130°C
- Operating Temperature Range: -40°C to +100°C
- Forward Voltage: 18-21V at 20mA
- Peak Wavelength: 634nm
- Dominant Wavelength: 626nm
- Epoxy: Optical-grade with UV inhibitors
- Electrical Power Dissipation: 120 mW
- Reverse Voltage: 5 V
- Mechanical Dimensions: Length approx. 5.00 + 0.20 mm, width approx. 8.71 mm
Buy the Buy Avago HLMP-EG2A-XY0DD Part Number HLMP-EG2A-XY0DD Online
Purchase the Avago HLMP-EG2A-XY0DD high-brightness red LED lamp now to ensure dependable outdoor visibility for traffic signals, signage, and automotive applications. Its advanced optical design provides well-defined radiation patterns at various angles, delivering luminous efficiency of up to 2100 lumens at just 20mA. Made with UV-resistant epoxy, it withstands harsh environmental conditions, resistance to moisture, and high temperatures. Perfect for outdoor signaling and signage, this LED guarantees durability, clarity, and long-term performance in demanding applications.
Get Avago HLMP-EG2A-XY0DD today—designed for superior outdoor visibility and long-lasting reliability.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEG2AXY0DD?
You can click on the BUY or RFQ button to purchase HLMPEG2AXY0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEG2AXY0DD?
You can download the HLMPEG2AXY0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEG2AXY0DD?
BROADCOM
