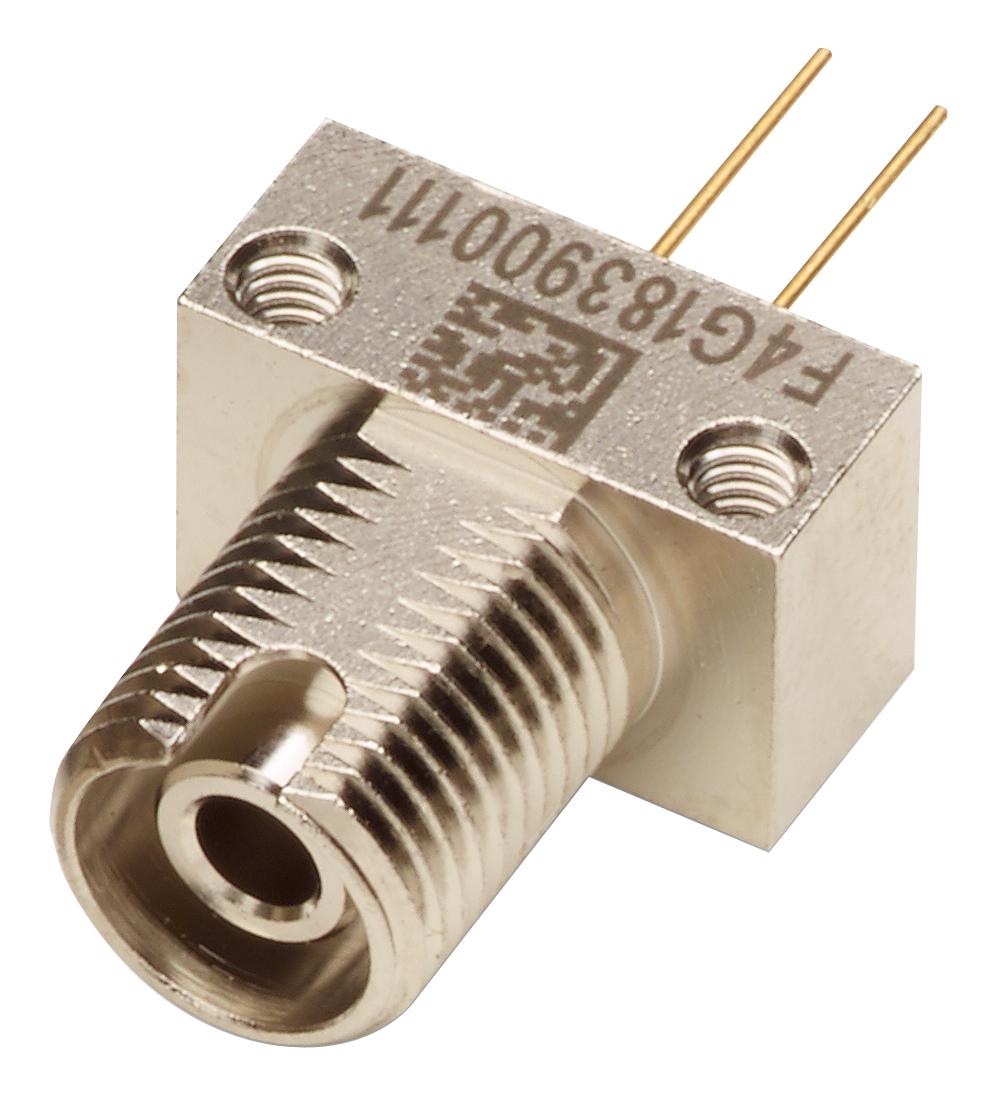

BROADCOM AFBRPOC204L Optical Power Converter
The AFBR-POC204L is a high-performance optical power converter designed for industrial applications requiring electrical isolation. It efficiently converts optical power from multimode fibers with NA ranging from 0.22 to 0.375 into electrical power, supporting 3 VDC applications. Suitable for powering sensors, RF coils, and medical equipment, this RoHS-compliant device operates within -40°C to +85°C. Featuring a robust metal housing with threaded ports, it ensures reliable system integration, thermal management, and easy fiber coupling for enhanced durability in demanding environments.
BROADCOM AFBRPOC204L Optical Power Converter Specifications:
- Input Power Range: up to 1.5 W optical input
- Output Voltage: typically 3.7V for 3 VDC models, 6.2V for 5 VDC models
- Output Power: up to 600 mW for 3 VDC models, up to 720 mW for 5 VDC models
- Operating Temperature: -40°C to +85°C
- Fiber Core Diameter: 50 to 200 µm
- Numerical Aperture (NA): 0.22 to 0.375
- Fiber Length: application-specific, typically options up to several meters
- Connector Types: threaded ST or FC ports
- Housing: solid metal, RoHS compliant
- Power Conversion Efficiency: high, with thermal design for heat dissipation
- Electrical Isolation: complete, suitable for high-voltage environments
- ESD Resistance: minimum 100V according to human body model
- Recommended operating wavelength: not exceeding 830 nm
- Soldering Temperature: up to 260°C for 10 seconds
Buy the Broadcom AFBR-POC204L – Reliable Optical Power Converter for Industrial Applications
Purchase the Broadcom AFBR-POC204L optical power converter online today and ensure reliable electrical isolation in your industrial systems. This compact, RoHS-compliant device supports 3 VDC applications and seamlessly converts optical power from multimode fibers with high efficiency. Its rugged metal housing with threaded ports guarantees secure installation and thermal management. Perfect for powering sensors, RF coils, medical devices, and high-voltage equipment, this converter enhances system stability and performance across a wide temperature range, making it an essential component for demanding industrial environments.
Get Broadcom AFBR-POC204L today—built for precision, durability, and efficient power conversion from optical fibers in demanding environments.
