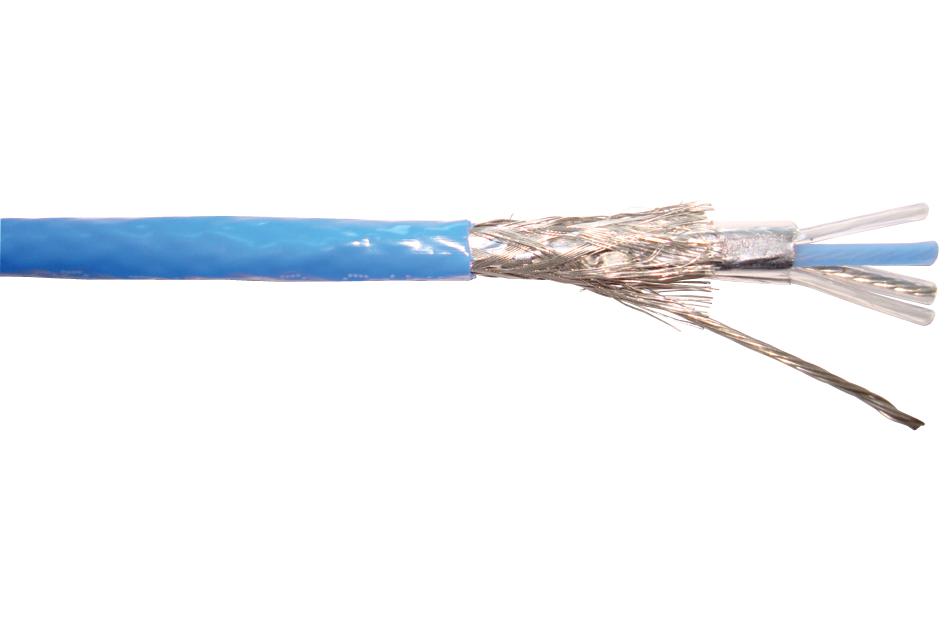

BELDEN 3073FC551000 Shielded Data Cable
The BELDEN 3073F C551000 is a high-performance shielded data cable suitable for a wide range of applications requiring secure and reliable data transfer. Constructed with 18 AWG stranded tinned copper conductors, the cable offers excellent conductivity. The flame-retardant polyolefin insulation and Beldfoil® shield provide robust protection against electromagnetic interference and fire hazards. A UV-resistant PVC jacket ensures durability and longevity in various environments. This cable is ideal for data networking, telecommunications, and industrial control systems where signal integrity and protection are paramount.
BELDEN 3073FC551000 Shielded Data Cable Specifications:
- AWG: 18
- Stranding: 7x26
- Conductor Material: Tinned Copper
- Insulation Material: FRPO (Flame Retardant Polyolefin)
- Shield Type: Beldfoil (100% Coverage) + Tinned Copper Braid (55% Coverage)
- Jacket Material: PVC (Polyvinyl Chloride)
- Nominal Diameter: 0.388 in
- Nominal Wall Thickness: 0.053 in
- Conductor DCR: 6.9 Ohm/1000ft
- Shield DCR: 2.9 Ohm/1000ft
- Mutual Capacitance: 15.3 pF/ft
- Nominal Inductance: 0.15 µH/ft
- Nominal Characteristic Impedance: 100 Ohm
- Insertion Loss (1 MHz): 0.41 dB/100ft
- Insertion Loss (10 MHz): 1.33 dB/100ft
- Insertion Loss (50 MHz): 2.97 dB/100ft
- Insertion Loss (100 MHz): 4.2 dB/100ft
- Insertion Loss (200 MHz): 5.95 dB/100ft
- Insertion Loss (400 MHz): 7.52 dB/100ft
- Nominal Velocity of Propagation (VP): 64.5 %
- UL Voltage Rating: 600V RMS
- Operating Temperature Range: -40°C To +75°C
- Bulk Cable Weight: 61 lbs/1000ft
- Max Recommended Pulling Tension: 90 lbs
- Min Bend Radius: 4 in
- NEC Specification: CMG, PLTC, ITC, TC
- CEC Specification: CMG
- EU RoHS Compliant: Yes
- CA Prop 65 Compliant: Yes
- Flammability Rating: FT1, FT4
- Plenum Rating: No
