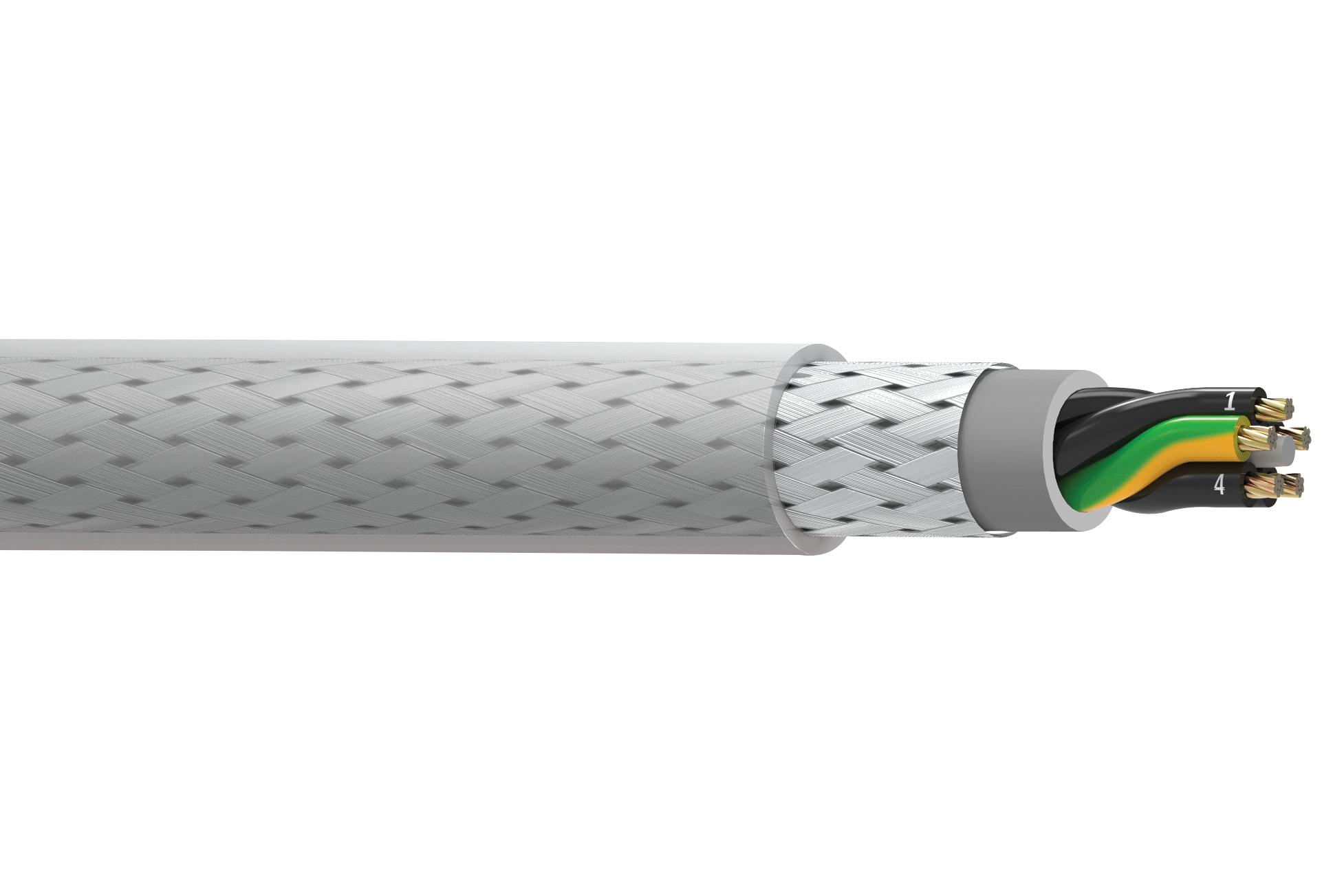

BELDEN 73012WS0081000 Shielded Power Cable
The 73012WS Multi-Conductor shielded cable is designed for light to moderate flexing applications up to 1 million cycles. Featuring 20 AWG stranded bare copper conductors, PVC insulation, oil-resistant PVC inner jacket, and a tin-plated copper braid shield with 85% coverage, it ensures durability and reliable signal transmission. The outer jacket is made of oil-resistant PVC, suitable for industrial environments. Its mechanical and electrical properties meet UL, CSA, VDE, and RoHS standards, making it ideal for flexible, shielded power and control applications in challenging conditions.
BELDEN 73012WS0081000 Shielded Power Cable Specifications:
- Conductor: 20 AWG stranded (10x30) bare copper
- Insulation Material: PVC, 0.081 inches thick
- Inner Jacket: PVC, 0.407 inches thick
- Outer Shield: Tin-plated copper braid, 85% coverage
- Outer Jacket: Oil-resistant PVC
- Storage Temperature Range: -40°C to +90°C
- Operating Temperature Range (Flexing): -6°C to 190°C
- Installation Temperature Range (Flexing): -6°C to 190°C
- Bulk Cable Weight: 340 lb/1000 ft
- Max Pulling Tension: 108 lbs
- Min Bend Radius (continuous flexing): 2.6 inches
- Flex Cycle Life: Up to 1 million flexes
- Applicable Standards: UL (UL Style 2587), CSA, VDE, RoHS II, REACH, Prop 65
- Voltage Rating: 600 V
- Flame Test: CSA FT
- Insulation Color Code: Individually numbered
- Shield Coverage: 85%
Buy the Belden 73012WS – Reliable Shielded Wire for Industrial Applications
Purchase the Belden 73012WS shielded multi-conductor cable online today for flexible and reliable power distribution in industrial settings. Its high flex cycle endurance, oil-resistant PVC outer jacket, and copper braid shield make it ideal for light to moderate flexing applications up to 1 million cycles. With UL, CSA, and RoHS compliance, this cable guarantees safety, durability, and optimal performance in challenging environments. Order now to enhance your projects with premium quality wire tailored for industrial automation, control systems, and power distribution needs.
Order your Belden Series 73012WS shielded cable today and ensure durable, flexible wiring suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 73012WS0081000?
You can click on the BUY or RFQ button to purchase 73012WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73012WS0081000?
You can download the 73012WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73012WS0081000?
BELDEN
