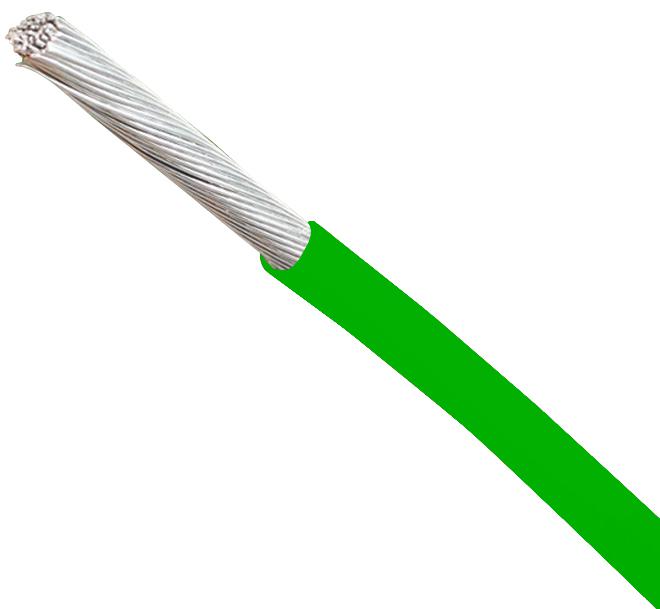

BELDEN 39122005100 Hook-up wire
Belden 39122 hook-up wire is a high-quality, 22 AWG stranded (7x30) tinned copper conductor with PPO insulation, rated for 105°C and 600V. Suitable for electronic circuits and internal wiring, it features UL Type AWML 11028, meets RoHS II, WEEE, and ELV directives, and complies with EU and US safety standards. Its dry operation temperature ranges from -40°C to +105°C, with a nominal diameter of 0.053 inches, and it is ideal for electrical panel building, appliance manufacturing, and automotive applications, offering reliable performance in flexible, compact wiring solutions.
BELDEN 39122005100 Hook-up wire Specifications:
- Conductor: 22 AWG stranded (7x30) tinned copper
- Insulation Material: PPO (Polyphenylene Oxide)
- Overall Diameter: 0.053 inches
- Rated Voltage: 600V
- Temperature Range: -40°C to +105°C
- Bulk Cable Weight: 2.800 lbs/1000 ft.
- RoHS II, WEEE, ELV compliant
- UL Rating: 600 V, 105°C
- UL Type: AWML 11028
- Flame Test: UL Flame Test - V-2
- Plenum: No
- Lead-free and halogen-free options available
- Flexible stranded conductor for easy installation
- Universal application for electronic and electrical wiring
- Meets EU and US safety and environmental standards
Buy the Belden Series 39122 Hook-up Wire: 600V 105°C Tinned Copper
Replace your existing wiring with Belden Series 39122 hook-up wire, designed for durability and safety in electronic and electrical systems. Featuring 22 AWG stranded tinned copper conductors and PPO insulation, it is rated for 600V and operating temperatures up to 105°C, making it ideal for electrical panels, appliances, and automotive wiring. UL and RoHS compliant, this flexible wire offers easy installation and reliable performance. Purchase online now to enhance your electrical projects with premium, compliant wiring solutions and ensure safe, long-lasting connections.
Order your Belden Series 39122 hook-up wire today and ensure reliable, high-performance electrical connections for your electronic and electrical projects.
