Belden 3GDSYKC50 Control Cable

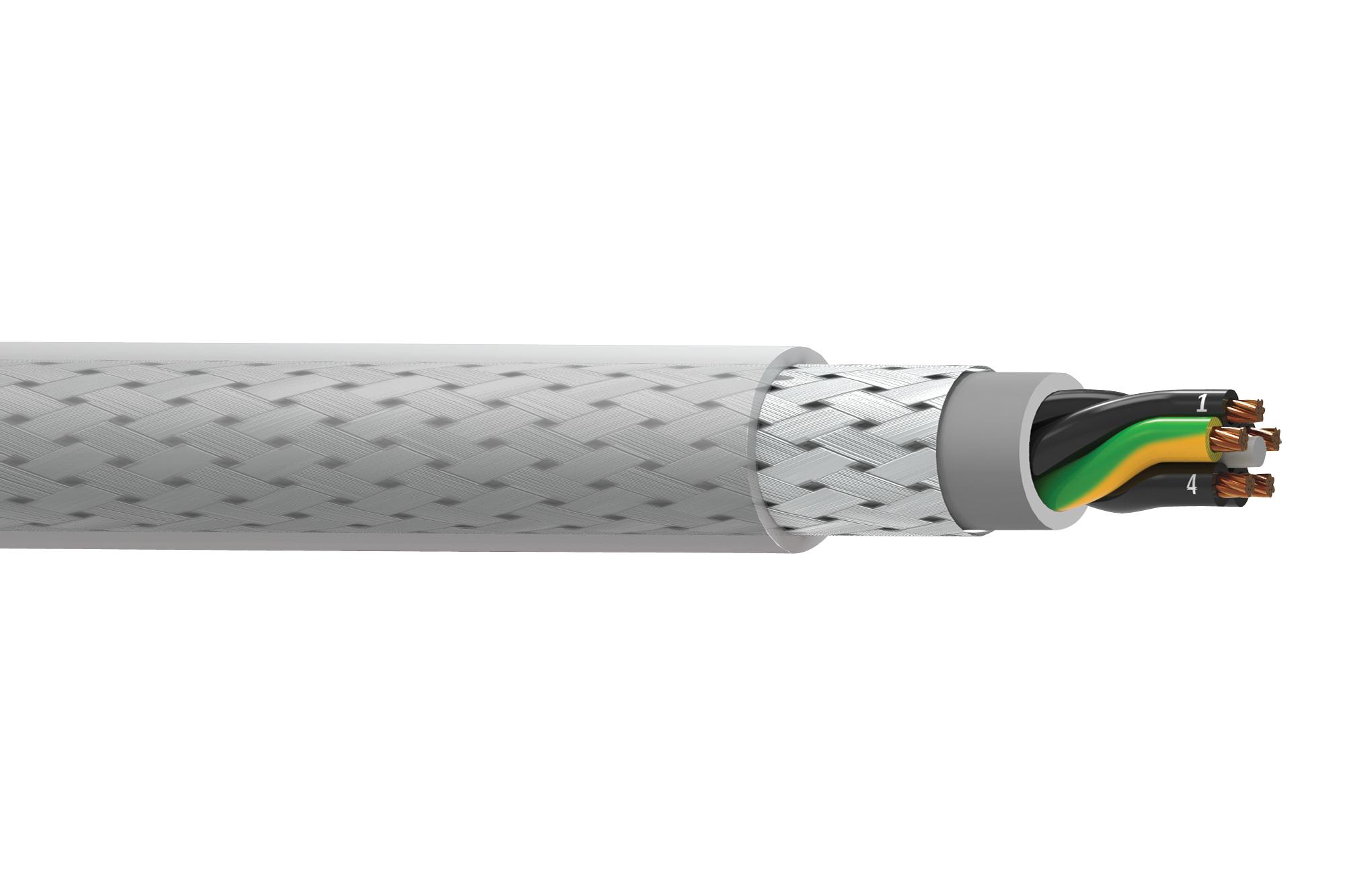

The MachFlex 350 SY armored control cable with galvanized steel wire braid shield is designed for fixed and occasional flexing applications in industrial environments. It features PVC insulation and outer sheath, rated for 300/500 V, with excellent chemical, UV, and mechanical protection. Suitable for control sensors, control panels, machinery, and auxiliary equipment, these cables support temperatures between -30°C and +80°C. Available with or without protective grounding and various conductor sizes, ensuring high durability and reliable performance in demanding industrial control systems.
Belden 3GDSYKC50 Control Cable Specifications:
- Voltage Rating: 300 / 500 V
- Insulation Material & Color: PVC, all black or with protective conductor (green & yellow)
- Outer Sheath Material: PVC
- Temperature Range: -30°C to +70°C (occasional), -40°C to +80°C (fixed)
- Construction: Conductor, insulation, inner sheath, galvanized steel wire braid shield, outer sheath
- Standards: DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, DIN VDE 0482-332-1-2, IEC 60332-1-2
- Properties: UV resistant, chemical resistant, flexible, RoHS, REACH, CE compliant
- Application: Suitable for control sensors, control panels, machinery, and temporary or fixed installations
- Physical Dimensions: Conductor sizes range from 3G0.5SY to 20G25SY with varying lengths and tolerances, cable quality varies based on construction
- Shield: Galvanized steel wire braid, with option for protective grounding (G)
Buy the Roem 3GDSY – Reliable Control Cable for Industrial Applications
Order the Roem control cable today for reliable performance in industrial automation and machinery. Designed with galvanized steel braid for excellent mechanical protection, these PVC-insulated cables support stable operation in harsh environments. Ideal for control panels, sensors, and equipment requiring durable wiring solutions. The cables meet international standards, ensuring safety and compliance. With various conductor sizes and options for grounding, they provide flexibility for diverse industrial needs, making them a trustworthy choice for your control and automation systems.
Get Roem 3GDSY today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy Belden 3GDSYKC50?
You can click on the BUY or RFQ button to purchase 3GDSYKC50 from an authorized Belden distributor.
How do I troubleshoot issues or seek technical support for part 3GDSYKC50?
You can download the 3GDSYKC50 datasheet or visit the Belden website for support.
Who is the manufacturer of 3GDSYKC50?
Belden
