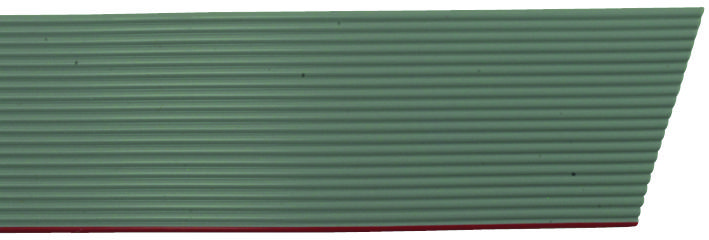

BELDEN 9L28020008H100 Ribbon Cable
The 9L28020 008H100 is a 20-core unshielded flat ribbon cable featuring tinned copper conductors and a PVC insulator. It is suitable for general-purpose electronic interconnect applications and provides reliable mass termination to standard IDC connectors. The cable offers an insulation resistance of over 10,000 Megaohms, a nominal velocity of propagation of 72%, and a maximum conductor DC resistance of 68.2 Ohms per 1000 feet. It is commonly used in computer and peripheral device connections, supporting temperatures from -40°C to +105°C and compliant with UL, CSA, RoHS, and other standards.
BELDEN 9L28020008H100 Ribbon Cable Specifications:
- Conductor AWG: Not specified
- Total Conductors: 20
- Conductor Spacing Center to Center: .050 +/- .002 inches
- Insulation Material: PVC
- Insulation Resistance: > 10,000 Megaohms
- Outer Shield: Unshielded
- Overall Thickness: .035 +/- .003 inches
- Overall Width: 1.00 +/- .008 inches
- Operating Temperature Range: -40°C to +105°C
- Bulk Cable Weight: 23 lbs/1000 ft.
- UL Rating: 105°C, 300 V RMS, VW-1
- CSA Specification: AWM IA 105°C 300 VFT1
- Voltage Rating: 300 V RMS
- Nominal Velocity of Propagation: 72%
- DC Resistance: 68.2 Ohms/1000 ft. max
- Dielectric Withstand Voltage: 2,000 V RMS
- Polarity: Red stripe on #1 conductor
- Plenum/Non-Plenum: No
Buy the Buy Belden 9L28020 008H100 Flat Ribbon Cable Part Number 9L28020008H100 Online
Purchase the Belden 9L28020 008H100 flat ribbon cable online for dependable electronic interconnect solutions. Featuring 20 conductors, PVC insulation, and unshielded design, it ensures reliable mass termination to standard IDC connectors. Suitable for a wide temperature range from -40°C to +105°C, it meets UL and CSA standards for safety and quality. Perfect for computer and peripheral device applications, this flexible cable provides high insulation resistance of over 10,000 Megaohms and withstands voltage up to 2000 V RMS. Order now for fast delivery and guaranteed performance.
Get Belden 9L28020 008H100 flat ribbon cable today—robust, reliable, and ideal for electronic interconnects with high insulation resistance and temperature tolerance.
Frequently Asked Questions
Where can I buy BELDEN 9L28020008H100?
You can click on the BUY or RFQ button to purchase 9L28020008H100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9L28020008H100?
You can download the 9L28020008H100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9L28020008H100?
BELDEN
