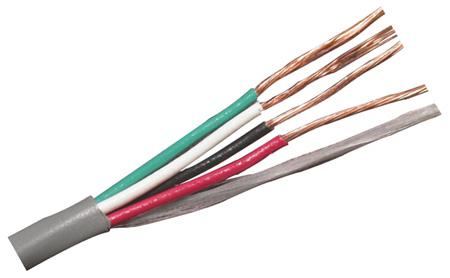

BELDEN 5502UE0081000 Security Alarm Cable
The 5502UE 0081000 is a 1,000-foot, four-conductor unshielded security and alarm cable featuring 22 AWG (7 x 30) bare copper conductors. It has polypropylene insulation and a grey PVC jacket with a ripcord for easy stripping. This multi-conductor cable is designed to transmit low-voltage analog data and signals within enclosures, connecting controllers, I/O devices, and components such as sensors (temperature, pressure), relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons, and alarms. Exhibits a conductor-to-conductor capacitance of approximately 17 pF/ft, a DC resistance of 16.2 Ω per 1000 ft at 20°C, and UL1666 flame rating, making it ideal for security and commercial applications.
BELDEN 5502UE0081000 Security Alarm Cable Specifications:
- Conductors: 22 AWG (7 x 30) bare copper
- Insulation Material: Polypropylene
- Jacket Material: PVC, grey color
- Ripcord: Yes
- Nominal Diameter: 0.141 inches
- Operating Temperature Range: -20°C to +75°C
- UL Flame Test: UL1666 Vertical Shaft
- Conductor-to-Conductor Capacitance: ~17 pF/ft
- DC Resistance: 16.2 Ω per 1000 ft at 20°C
- Max Operating Voltage: 300 V
- Pulling Tension: Max 36,400 lbs.
- Applicable Standards: NEC 800, RoHS, UL, CE, Prop 65, WEEE
- Length: 1000 feet
- Application: Security, alarm, intercom, PA, sound/audio systems, low-voltage data signals
Buy the Buy Belden Security Alarm Cable Part Number 5502UE0081000 Online
Purchase the Belden 5502UE 0081000 online today to ensure your security and alarm systems operate reliably with top-quality, UL-listed cable. This four-conductor, 22 AWG cable features a PVC grey jacket and a ripcord for easy installation, making it ideal for transmitting low-voltage data, sensor signals, and control commands in commercial environments. Its UL1666 flame rating and excellent electrical characteristics guarantee safety and performance. Reliable, durable, and designed for professional installation—order now and improve your security infrastructure effortlessly.
Buy Belden 5502UE 0081000 now and experience unmatched reliability and performance for security and alarm systems with high flexibility and flame safety.
Frequently Asked Questions
Where can I buy BELDEN 5502UE0081000?
You can click on the BUY or RFQ button to purchase 5502UE0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 5502UE0081000?
You can download the 5502UE0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 5502UE0081000?
BELDEN
